WVH-EPX
- Switch between VGA and HDMI video sources by the WVH-EPL (Tx) and transport the video stream to the WVH-EPR (Rx)
- HDBaseT™ 2.0 technology delivers Ultra HD (4K2K/30Hz with YCbCr 4:4:4 and 4K2K/60Hz with YCbCr 4:2:0)
- Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K/60Hz with 4:2:0 coding)
- Supports all standard formats of audio, such as Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, and more
- VGA IN supports up to 1080P/60Hz (12bits)
- Power over Ethernet (PoE) by Tx
- HDCP 1. x and 2.2 compliant
- All frequency of IR receiver and emitter (bi-direction)
- RS-232 for upgrading firmware
- Connect with CAT.5/5e/6 cable
- Equip the anti-interference ability of radio communication
- Customer Story for WVH-EPX
-
Enable to Switch between VGA and HDMI Inputs
When presenters do live presentations, they can connect their laptops or the PC in the venue through the WVH-EPL transmitter and CAT.5/5e/6 cable to the displays. Its maximum resolution is up to 4K2K/60Hz 4:2:0 (HDMI Input) and 1080P/60Hz 12bits (VGA Input).

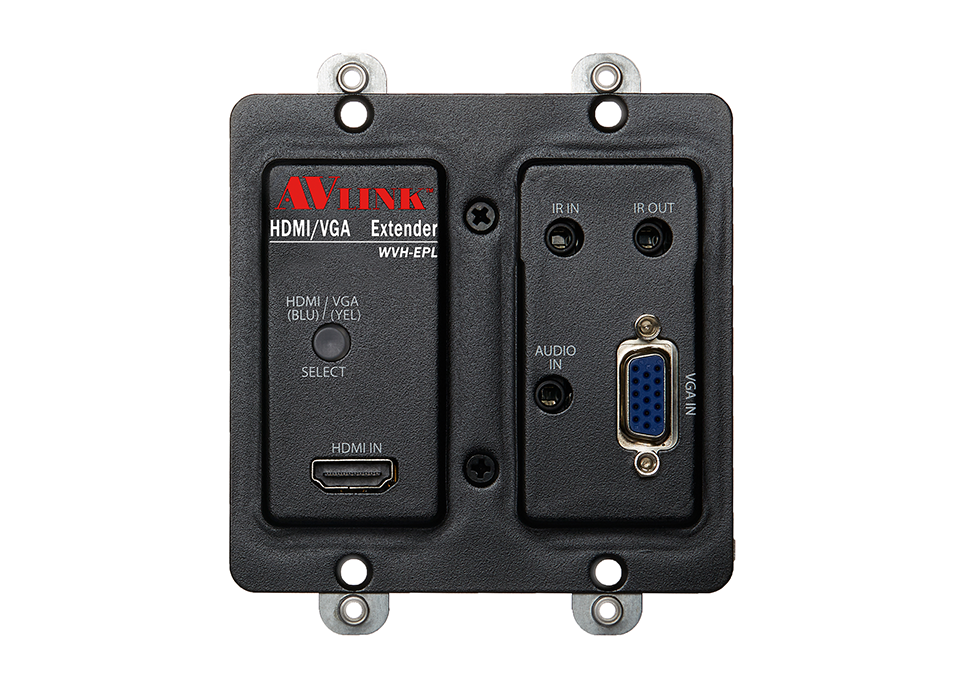

The WVH-EPL transmitter allows presenters to switch between 2 video sources (HDMI and VGA) and transport the selected video stream to the remote side (the WVH-EPR receiver). The WVH-EPL transmitter adopts HDBaseT™ 2.0 technology to safeguard trustworthy signal management and enables transmission of 4K UHD video, HD audio, 2-Way IR, RS-232, PoE (Power over Ethernet) up to 100 meters for mission-critical applications, including education, corporate, and government.
-
Function WVH-EPL WVH-EPR HDMI Input Connector 1 (A-Type Female) None HDMI Output Connector None 1 (A-Type Female) VGA Input Connector 1 None Source select (HDMI/VGA) LED SW X1 (BLU/YEL) LINK RJ-45 Connector x 1 IR IN 3.5φ Stereo Jack x 1 IR OUT 3.5φ Stereo Jack x 1 Audio In 3.5φ Stereo Jack x 1 None Max. Resolution 4KX2K/60Hz 4:2:0 (HDMI IN)
1080P/60Hz 12bits(VGA IN)Power Adapter (Min.) DC 48V 0.28A
(1x2 Pole Captive Screw Socket)None Cable Distance Cat.6@100 meters (Max.) RS-232 Connector 1X3 Pole Captive Screw Socket x 1 Housing Metal Weight 265g 260g Dimensions (LxWxH) 107x92x45mm 107x92x39mm -
-
1x WVH-EPL and WVH-EPR Unit
1 user manual
1x Power adapter DC 48V (With 1x2 Pole Captive Screw Socket)
4x screws
2x Female 1x3 Pole Captive Screw Socket
1x IR receiver cable
1x IR blaster cable (Peak Wavelength 940nm)
