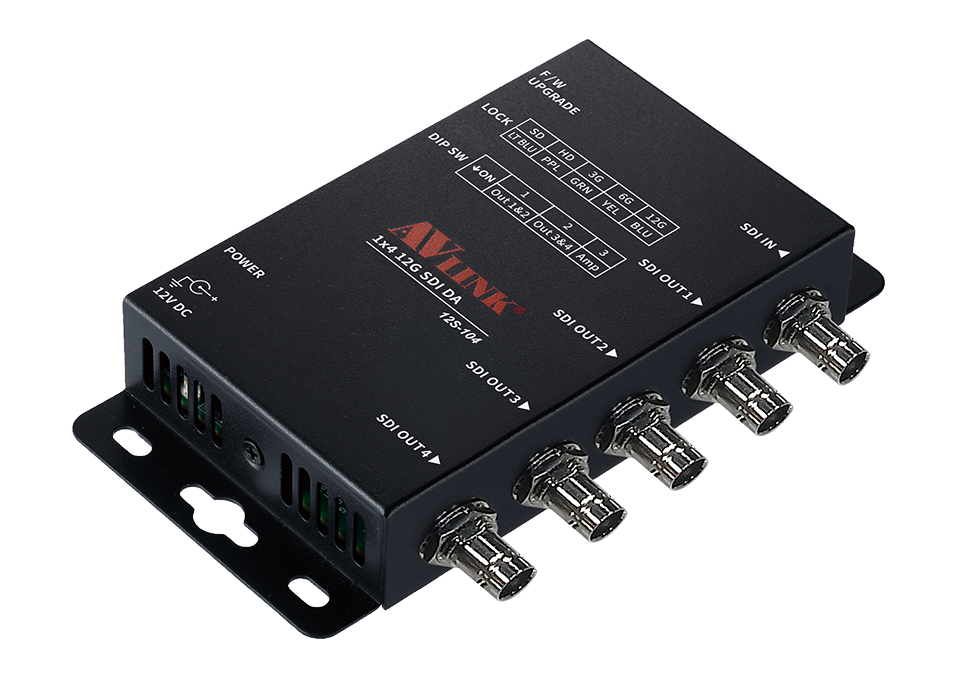

12S-104
Through the 12G-SDI/SDI Distribution Amplifier, you can use one image source to more TV/displays. Featuring four/eight separately buffered 12G-SDI/SDI outputs, all products in this series provides automatic cable equalization to 75Meters and automatically adapts to different data rate.
- Compliant with SMPTE 2082-1, 2081-1, 424M, 292M, 344M, 259M and DVB-ASI.
- SD/HD/3G/6G/12G-SDI Input Auto Detect data rate with multi color Lock LED Indicator.
- SD/HD/3G/6G/12G-SDI Input signal quality with flash light Lock LED Indicator.

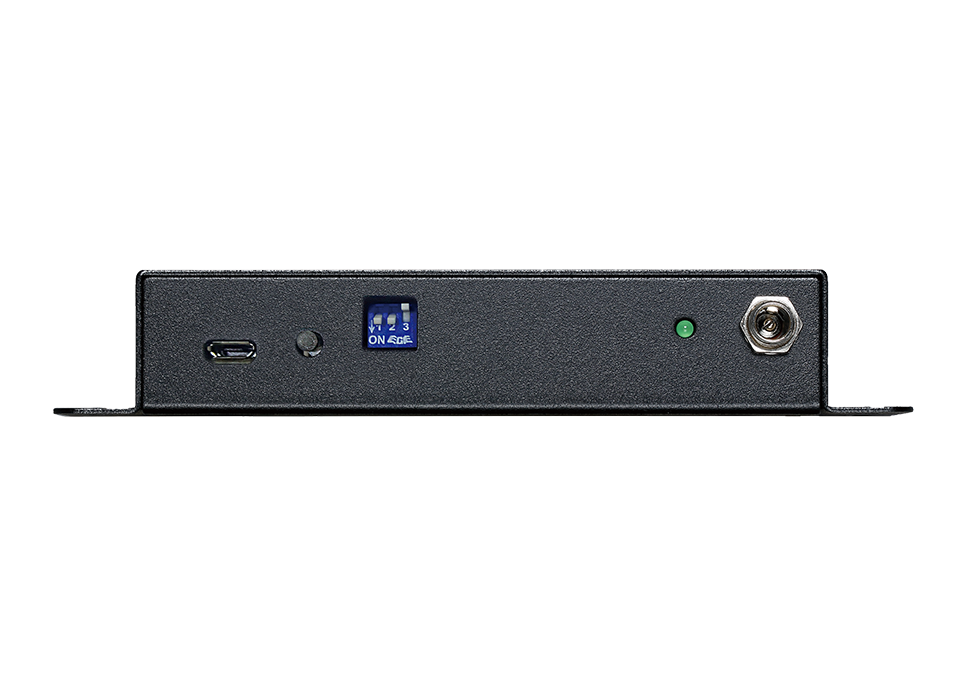

- Micro USB Interface for user firmware update.
- DIP SW Control SDI OUT 1&2, 3&4 output switch and fine-tuning output Swing (for 12S-104).
- Inter-locked power plug for DC supply stably.
-

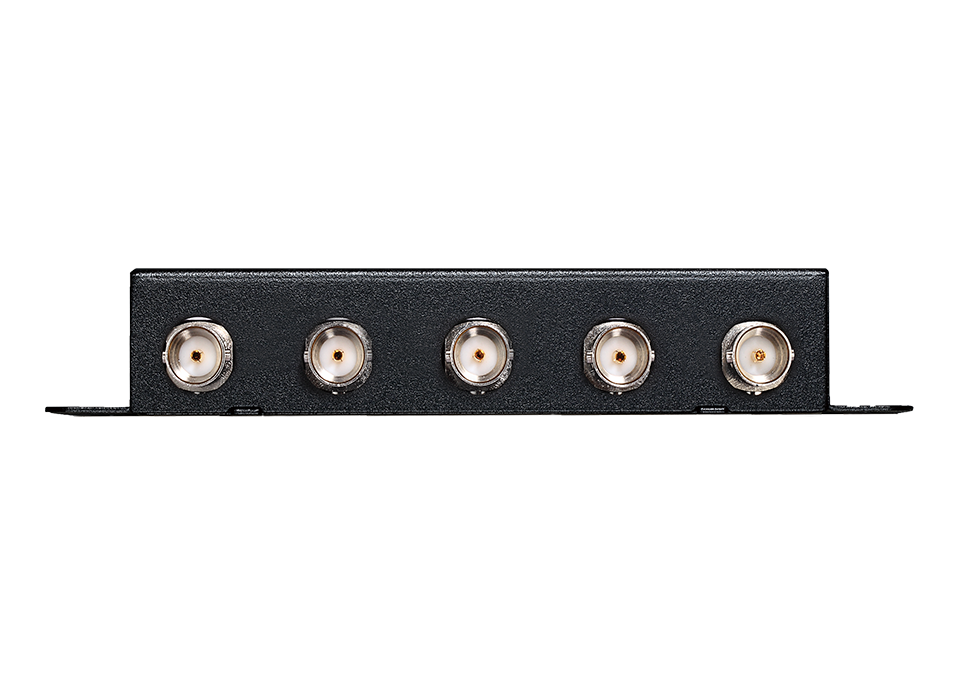

Function 12S-104 Input serial digital BNC connector 1 Output serial digital BNC connector 4 BNC impedance 75Ω Micro USB 1 Max. Resolution UHD, 4K@60 Operation Temperature 0℃~40℃{32℉~104℉} Power Adapter (Min.) DC 12V with lock Housing Metal Weight 316g Dimensions (LxWxH)mm 150x75x25 -
1 x 12S-104
1 x user manual
1 x adapter DC 12V with locking jack
4 x foot pads
2 x screws
