Through the 12G-SDI/SDI Distribution Amplifier, you can use one image source to more TV/displays. Featuring four/eight separately buffered 12G-SDI/SDI outputs, all products in this series provides automatic cable equalization to 75Meters and automatically adapts to different data rate.
  • Compliant with SMPTE 2082-1, 2081-1, 424M, 292M, 344M, 259M and DVB-ASI.
  • SD/HD/3G/6G/12G-SDI Input Auto Detect data rate with multi color Lock LED Indicator.
  • SD/HD/3G/6G/12G-SDI Input signal quality with flash light Lock LED Indicator.

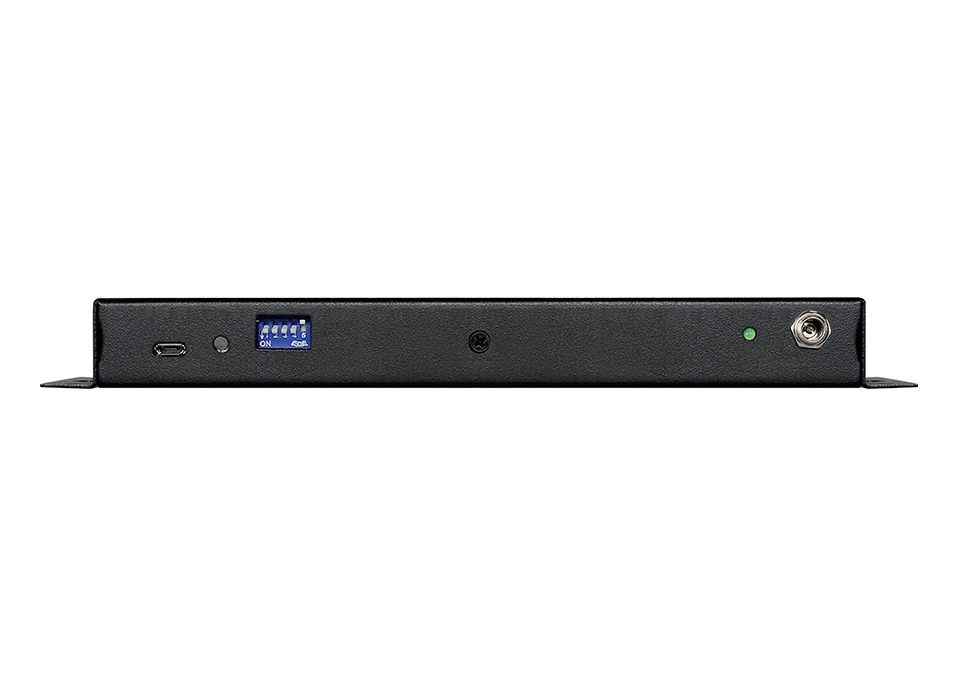

  • Micro USB Interface for user firmware update.
  • DIP SW Control SDI OUT 1&2, 3&4, 5&6, 7&8 output switch and fine-tuning output swing (for 12S-108).
  • Inter-locked power plug for DC supply stably.
  • Function 12S-108
    Input serial digital BNC connector 1
    Output serial digital BNC connector 8
    BNC impedance 75Ω
    Micro USB 1
    Max. Resolution UHD, 4K@60
    Operation Temperature 0℃~40℃{32℉~104℉}
    Power Adapter (Min.) DC 12V with lock
    Housing Metal
    Weight 723g
    Dimensions (LxWxH)mm 240x114x25
  • 1 x 12S-108
    1 x user manual
    1 x adapter DC 12V with locking jack
    4 x foot pads
    2 x screws
