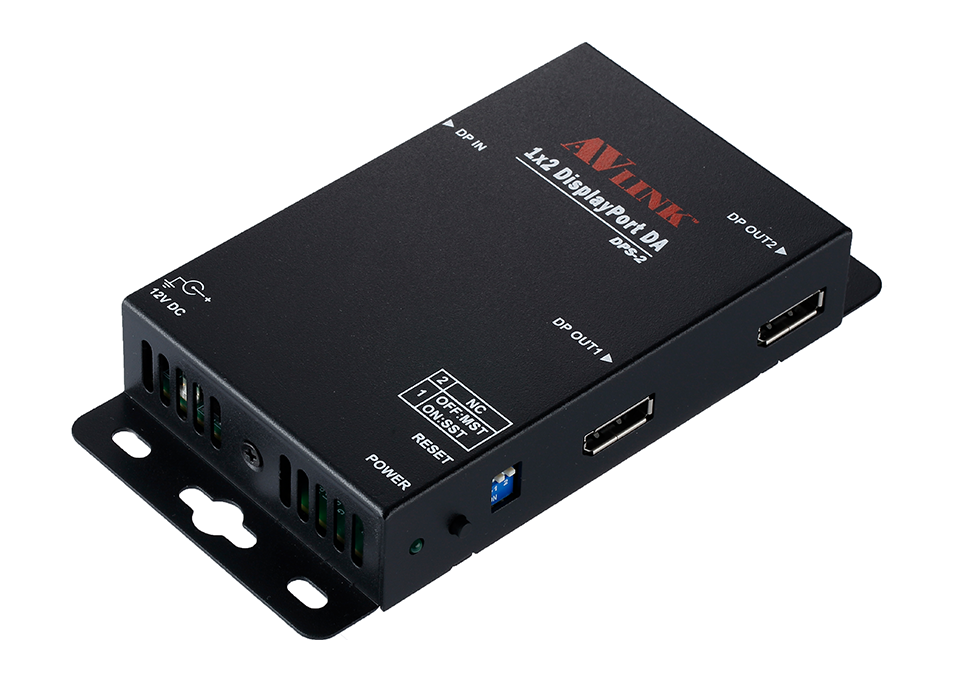

DPS-2

  • DP 1.2a Compliant.

  • Link rate HBR2/HBR/RBR.

  • Supports SST or MST.

  • Supports 1, 2, or 4 lanes.

  • HDCP compliant.

  • IN/OUT DP++ interface featuring.

  • HDMI 1.4 compliant receiver.

  • AC coupled HDMI 1.4 transmitter.

  • All 3D formats defined in DP 1.2a and HDMI 1.4 standards
  • Function DPS-2
    DP Input Connector 1
    DP Output Connector 2
    LED indicators POWER
    Power Adapter (Min.) DC 12V (LOCKING JACK)
    Cable Distance 5 meters (Max.)
    Max. Resolution 4Kx2K@60
    Housing Metal
    Weight 255 g
    Dimensions (LxWxH) 120x75x25mm

  • 1x DPS-2 Unit
    1x User manual
    1x Power adapter DC 12V with lock
    2x screws
    4x foot pad
