HDM-EXW+

  • Through the HDMI Extender, you can use one DVD to display identical image and extension of HDMI signal up to 100 meter on HDTV

  • HDCP  Compliant

  • Supports 3D pass-through

  • Supports CEC pass-through

  • Support RS-232(Bi-direction transfer)

  • Supports all frequency band IR control

  • One CAT.5 cable extension

  • Supports HDTV up to 4K2K

  • HDBaseT technology

  • Use CAT.5 cable to install easily

  • Cable Distance

  • Support HDMI DA (Local unit)
  • Function Local Remote
    HDMI In Connector HDMI A-Type Female x 1 None
    HDMI Out Connector HDMI A-Type Femalex1(DA) HDMI A-Type Female x 1
    RJ-45 Connector 1
    IR OUT 3.5φ Stereo Jack x 1
    IR2 IN 3.5φ Stereo Jack x 1
    Max. Resolution 4k2k
    Cable Distance 100 m (Max.)
    Power Adapter (Min.) DC 12V with lock
    Housing Metal
    Weight 472g 292g
    Dimensions (LxWxH) 171x120x25 mm 150x80x25 mm mm

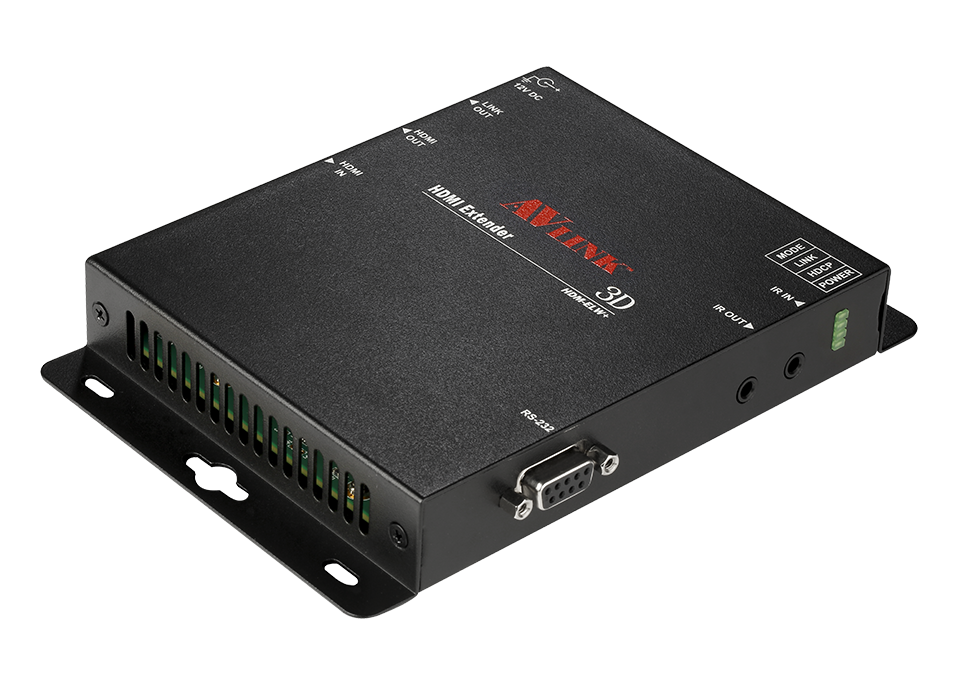

  • 1 x HDM-ELW+ Local Unit

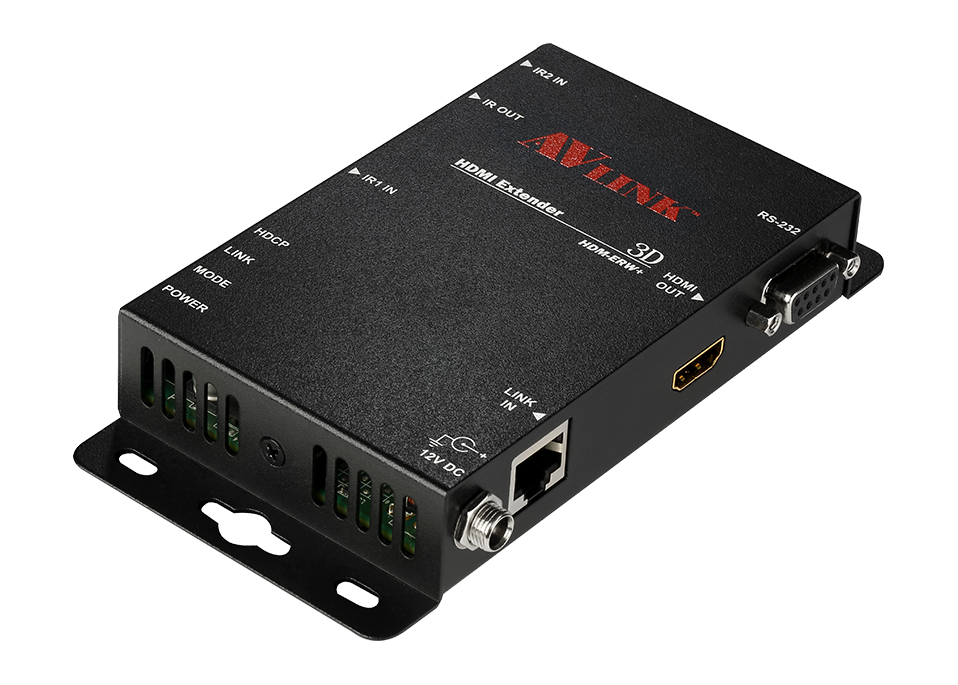

    1 x HDM-ERW+ Remote Unit
    1 user manual
    2 x Power adapter DC 12V with lock (for HDM-SXW+/HDM-EXW+)
    1 x IR Blaster Cable(Peak Wavelength 940nm)
    1 x IR Receiver Cable
    4 x screws
    8 x foot pads
    ​​​​​
