HDM-GENW


  • Extend 4K/60Hz 4:4:4 HDMI to 50 meters over a Cat 5e/6 cable

  • Multi-receiver Cascade: Cascade to 2 levels for 4K/60Hz sources, or 4 levels (Max.) for 4K/30Hz sources

  • Power over Cable (PoC)

  • HDCP 2.2/1.4 compliant

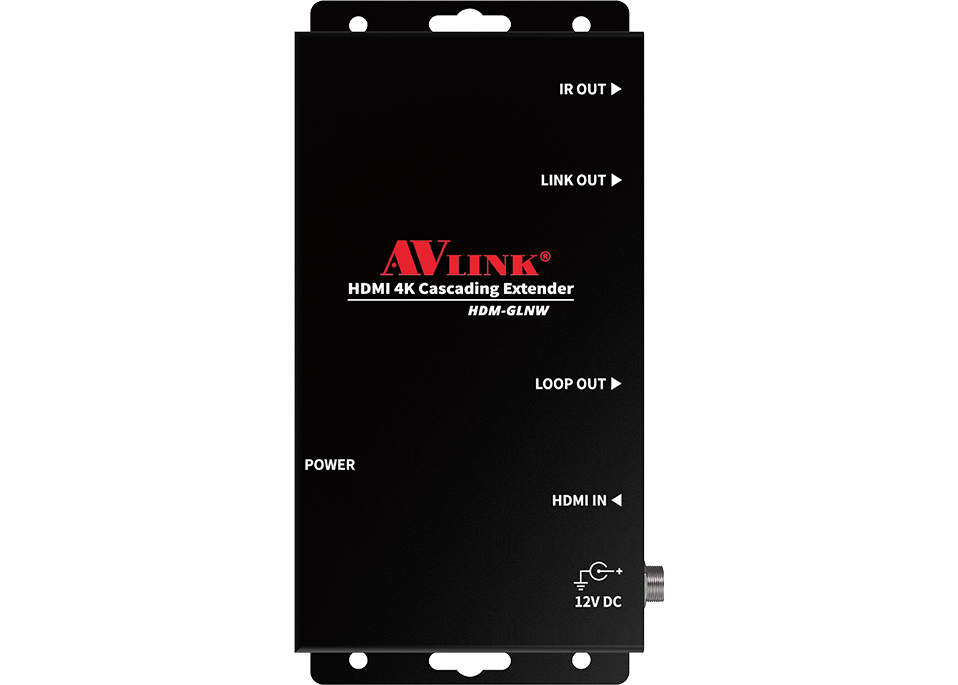

  • HDMI Local Loopback: Local Loop on the transmitter (Local/HDM-GLNW) to monitor real-time streaming content on the receiver side (Remote/HDM-GRNW)

  • Support all frequency band IR control

  • The wall-mountable design

  •

    4K HDMI Extender for 50 meters

    HDM-GENW is able to extend 4K/60Hz 4:4:4 HDMI to 50 meters via a Cat 5e/6 cable.

    Receiver Cascade


    Multi-receiver Cascade: Cascade to 2 levels for 4K/60Hz sources, or 4 levels (Max.) for 4K/30Hz sources



    Local Loop


    Local Loop on the transmitter (Local  / HDM-GLNW)) to monitor real-time streaming content on the receiver side (Remote  / HDM-GRNW).




    工作區域 11 複本 88

    Power over Cable

    PoC (Power over Cable) enables the device to power Cat. cable by using a single side of power on either the transmitter or receiver.



  •
    SPECIFICATIONS-HDM-GENW HDM-GLNW HDM-GRNW
    Cable Distance 50M (CAT6)
    HDMI In Connector HDMI A-Type Female x 1 None
    HDMI Out Connector HDMI A-Type Female x 1 HDMI A-Type Female x 1
    LED Indicator Power
    LINK RJ-45 Connector x 1 RJ-45 Connector x 2
    IR IN None 3.5φ Stereo Jack x 1
    IR2 OUT 3.5φ Stereo Jack x 1 None
    Max. Resolution 4K/60Hz 4:4:4
    Power Adapter (Min.) DC 12V 2A (Locking Jack)
    Power Consumption (with PoC) HDM-GLNW x 1 + HDM-GRNW x 1: 5.4W (Max.)
    HDM-GLNW x 1 + HDM-GRNW x 2: 10.2W (Max.)
    Housing Metal
    Weight 665±2 g
    Dimensions (L x W x H) 155 x 78 x 26 mm
  • 2022-05-05_HDM-3EXCU_Diagram






  • HDM-GENW:
    1 x HDM-GLNW and 1 x HDM-GRNW
    1 x IR Blaster and 1 x IR Receiver
    1 x Power Adapter DC 12V 2A with Locking Jack

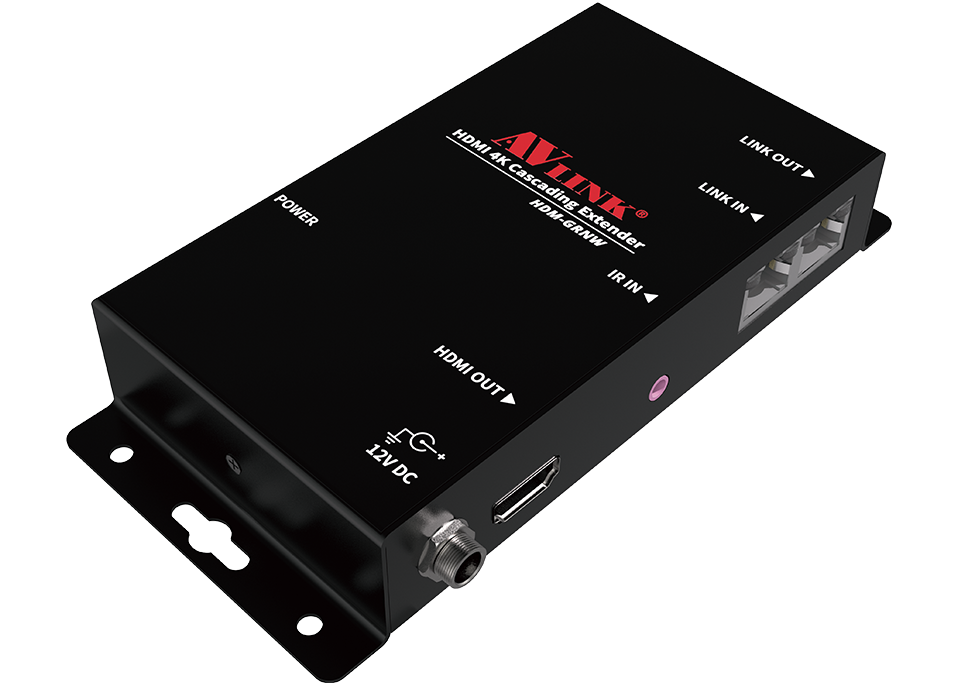

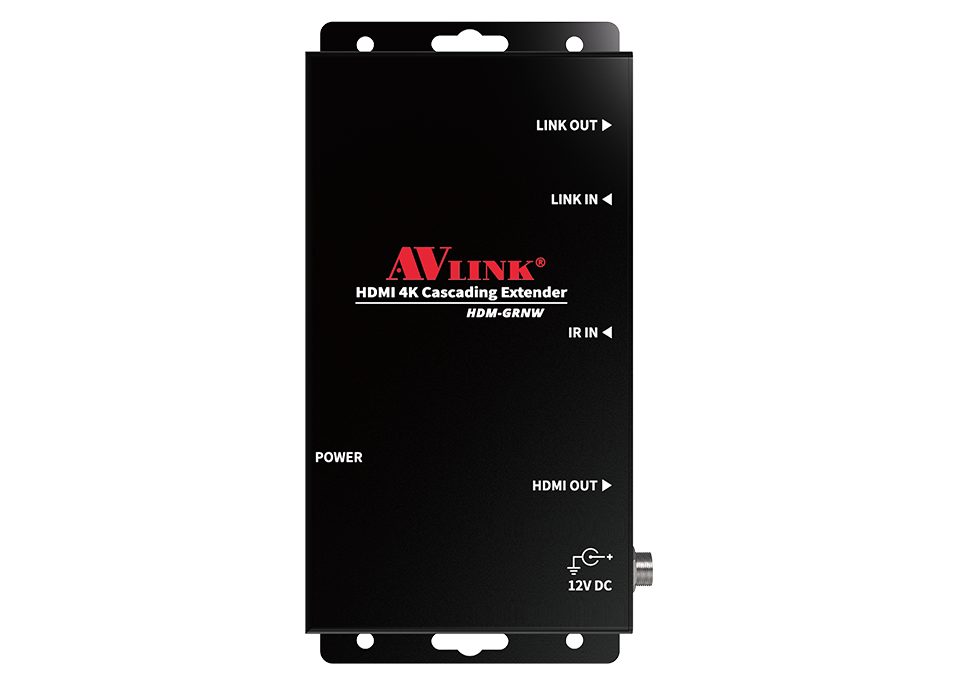

    HDM-GRNW:
    1 x HDM-GRNW
    1 x IR Receiver
    1 x Power Adapter DC 12V 2A with Locking Jack

    HDM-GENW2:
    1 x HDM-GLNW and 2 x HDM-GRNW
    1 x IR Blaster and 2 x IR Receiver
    2 x Power Adapter DC 12V 2A with Locking Jack
