HDM-SXC

  • Through the HDMI Extender, you can use one DVD to display an identical image and extension of HDMI signal on HDTV

  • Support HDTV up to 4K/60Hz 4:2:0 and 4K/30Hz 4:4:4

  • Support Power over Cable (POC)

  • HDCP Compliant

  • Support 3D pass-through / CEC pass-through / RS-232(Bi-direction transfer)

  • Support all frequency band IR control

  • One single CAT.x cable extension for easy installation

  • Extension up to 70 meters with zero compression

  • HDBaseT technology

  • ​Compact size (L 89.2 x W 63 x H 22 mm / L 3.5 x W 2.5 x H 0.9 in)
  • Function HDMI-SLC HDMI-SRC
    HDMI In Connector HDMI A-Type Female x 1 None
    HDMI Out Connector None HDMI A-Type Female x 1
    RJ-45 Connector 1
    RS-232 Terminal block (TX GND RX)
    IR OUT 3.5φ Stereo Jack x 1
    IR2 IN 3.5φ Stereo Jack x 1
    Max. Resolution 4K/60Hz 4:2:0 and 4K/30Hz 4:4:4
    Cable Distance 70 m (Max.)
    Power Adapter (Min.) DC 12V with lock
    Housing Metal
    Weight 175g 183g
    Dimensions (LxWxH) 89.2x63x22 mm

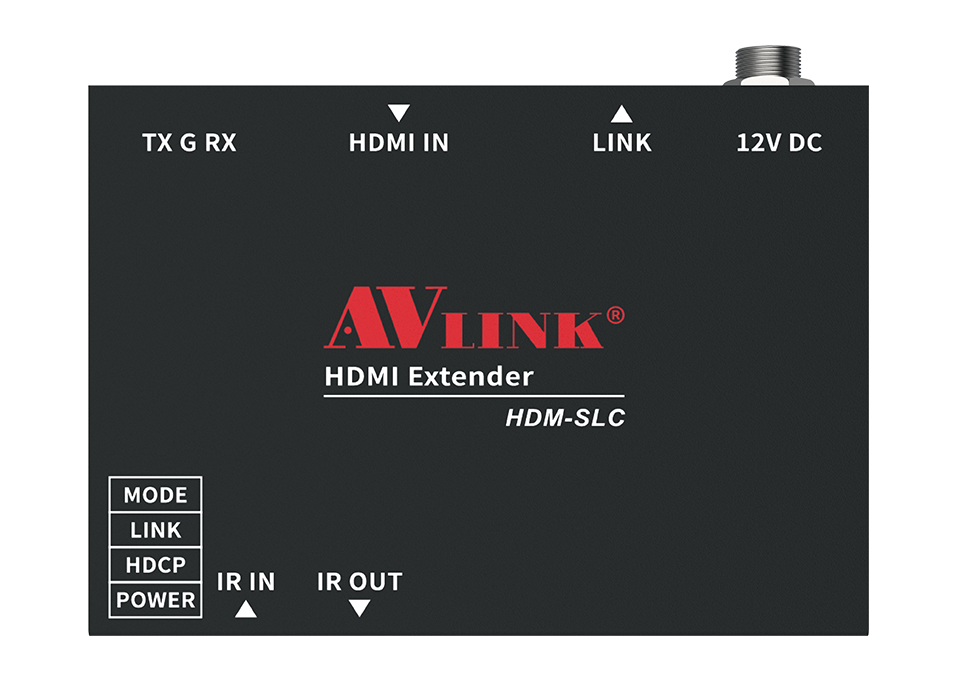

  • 1x HDM-SLC  Local Unit
    1x HDM-SRC  Remote Unit
    1x User manual
    1x Power adapter DC 12V with lock
