• Support resolution up to 4K x 2K/60Hz (4:4:4)
  • HDCP2.2/HDCP1.4 Compliant
  • Support HDR
  • Compliant with the specification of HDMI2.0 / HDMI1.4
  • Support RS-232 control
  • Remote controller for operation
  • Hot pluggable
  • Automatically skip over the power-off and unplugged cable

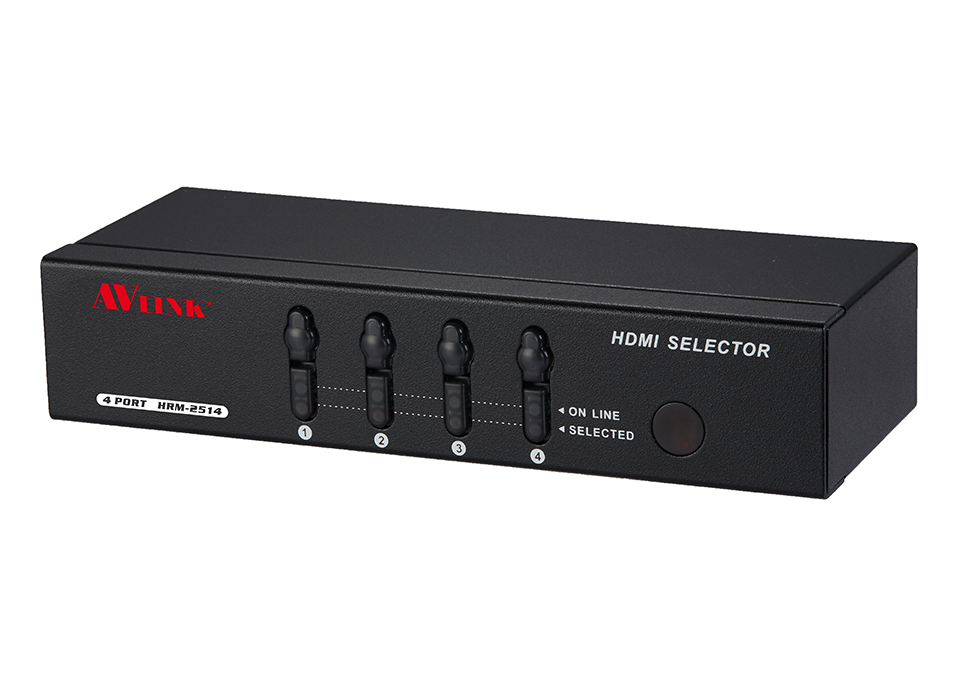

  • Function HRM-2514

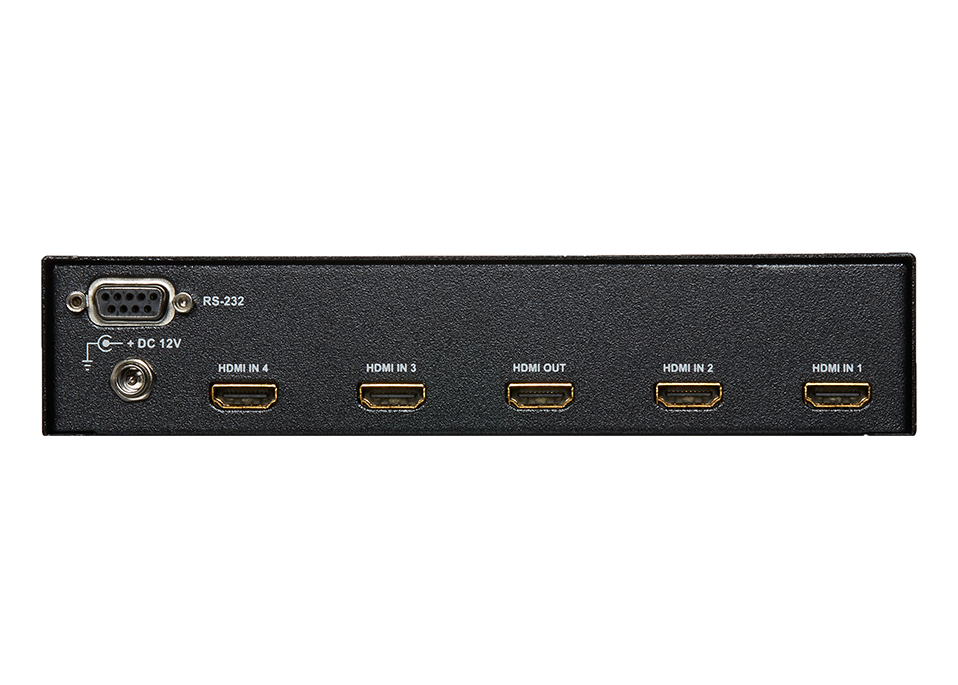

    HDMI Input Connector (A-Type Female) 4
    HDMI Output Connector (A-Type Female) 1

    On Line



    Select Switch 4
    RS-232 Connector 1x DB-9 Female
    Max Pixel clocks 600MHz
    Power Adapter (Min.) DC 12V/1.25A
    Housing Metal
    Weight 600g
    Dimensions (L x W x H) 200 x 75 x 45 mm
  • 1x HRM-2514
    1x user manual
    1x power adapter DC 12V/1.25A
    1x remote controller
    1x RS-232 1.8M cable (DB-9 Male to Female)
