HS-1614W

  • Distribute one UltraHD/8K source to 4 HDMI displays

  • HDMI 2.1 / HDCP 2.3 compliant and 40Gbps bandwidth

  • Support up to 8K/60Hz 4:2:0 10bit, 8K/30Hz 4:4:4 10bit, and 4K/120Hz 4:4:4 10bit

  • Support FRL, HDR, HDR10, HDR10+, and Dolby Vision

  • Support ARC / eARC

  • Audio Extract Function with Stereo 3.5mm Aux

  • EDID management

  • CEC pass-through

  • LED indicator shows the operating status

  • Firmware upgrade via a Micro-USB port

  • Cascading for more distributions
  •

    8K HDMI


    Support up to 8K/60Hz 4:2:0 10bit, 8K/30Hz 4:4:4 10bit, and 4K/120Hz 4:4:4 10bit

    HDMI 2.1


    HDMI (High-Definition Multimedia Interface) 2.1 compliant and 40Gbps bandwidth

    EDID Management


    Smart EDID Management allows to configure EDID settings efficiently. Make operation more intuitive and easier.





    HDCP 2.3


    HDCP (High-bandwidth Digital Content Protection) 2.3 compliant



    Dolby


    Support Dolby Digital/DTS-HD/Dolby TrueHD Audio and experience the advanced sound and visual technology

    CEC


    Support the function of CEC (Consumer Electronics Control)







  • HS-1614W
    Max. Resolution 8K/60Hz YUV420;10 bit
    HDCP version HDCP 2.3 (Backward Compatible)
    Cable Distance (Device to Monitor) 5M (Max.)
    Signal Type Standard HDMI Signal
    HDMI Input Connector A-Type Female x 1
    HDMI Output Connector A-Type Female x 4
    CEC Yes
    Power Adapter (Min.) DC 12V 1.25A (Locking Jack)
    Housing Metal
    Size (H x W x D ) 210 x 114 x 25 mm
    Net Weight 650g

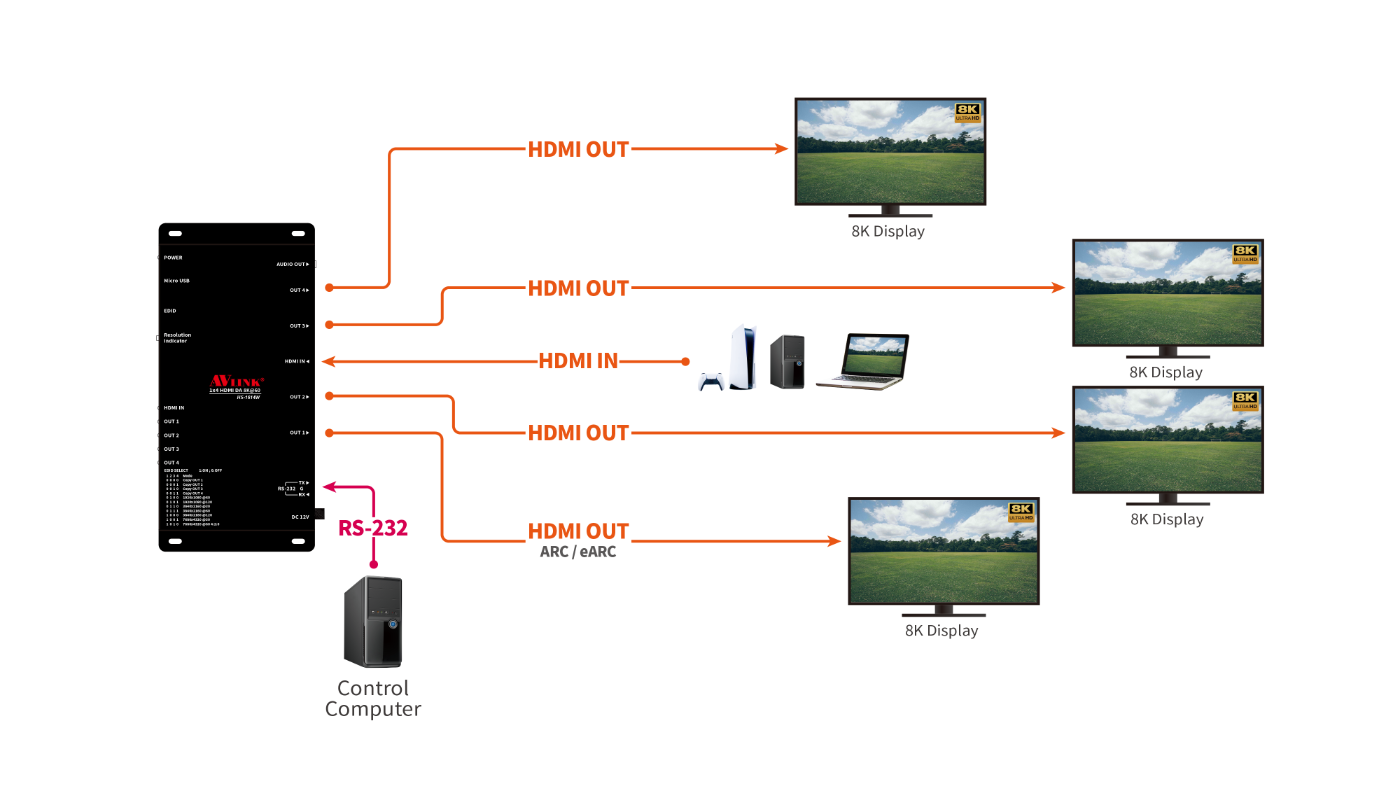

  • MaitreView 4KPro_Diagram_1920x1080

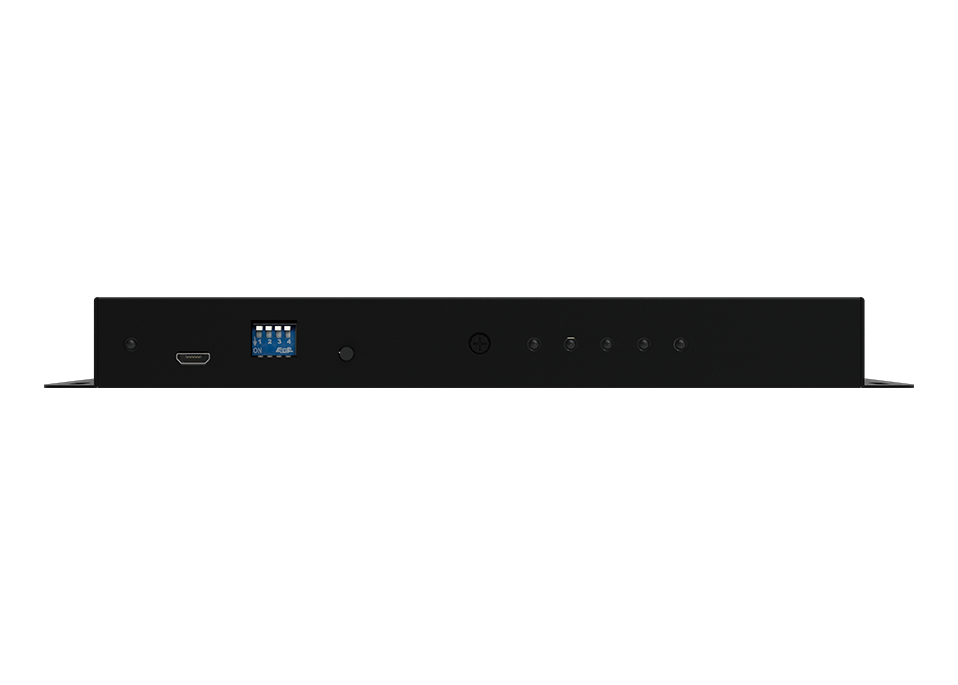

    • HS-1614W HDMI Distribution Amplifier
    • Power Adapter DC 12V
    • 5x Screws
    • 4x Foot Pads
    • 1x User Manual
