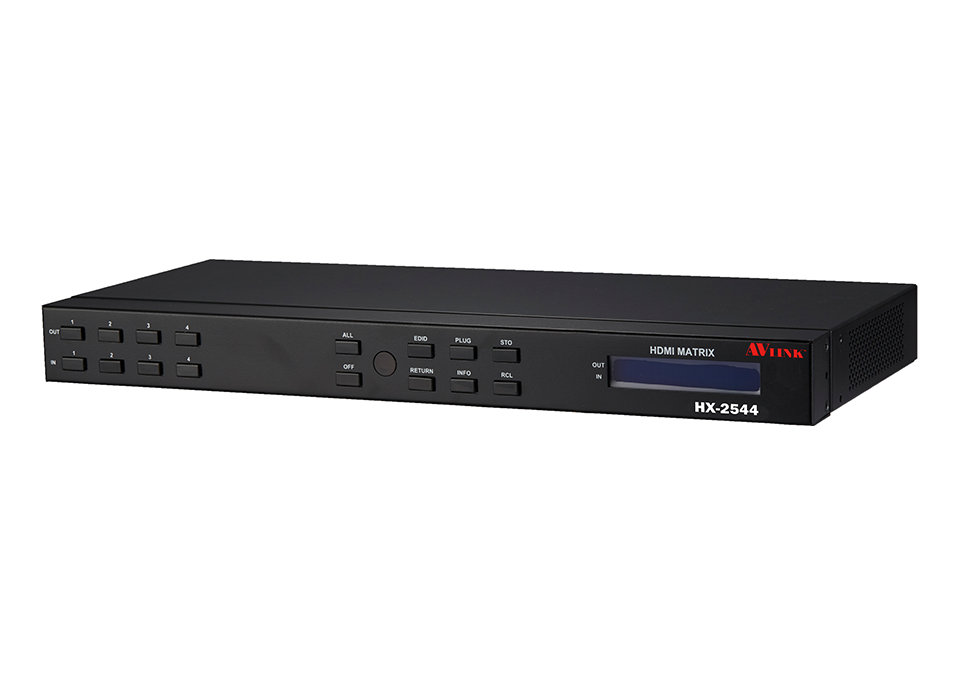

HX-2544

The HX-2544 Matrix switcher is a high-performance HDMI switching equipment combining video and audio. It is used for input/output crossswitching of image signals. It can also transmit image input separately to each multi-output equipment, thereby minimizing signal attenuation and ensuring high definition, integrating high-fidelity graphics and audio signal output.
  • Support 4x4 fixed I/O interfaces
  • Mixed-use HDMI cables for input and output connections
  • HDCP Compliant
  • Support HDR
  • EDID management (Copy from OUT port 1)
  • Memory control can be up to 4 sets
  • Support 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 60 Hz (4:4:4)
  • Support original 3D pass-through
  • Support High Definition Audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD MA)
  • Fast response time for channel switch
  • IR pass-through supports all IN and OUT ports
  • IR pass-through supports all kinds of IR frequency band
  • IR pass-through supports duplex transmission between IN and OUT ports
  • IR pass-through switch is based on HDMI switched by the controller
  • Support IR remote control
  • Support IR Mini-Controller to select the input channel through Output configuration
  • Support RS-232 remote control
  • Support Ethernet remote control
  • Function HX-2544

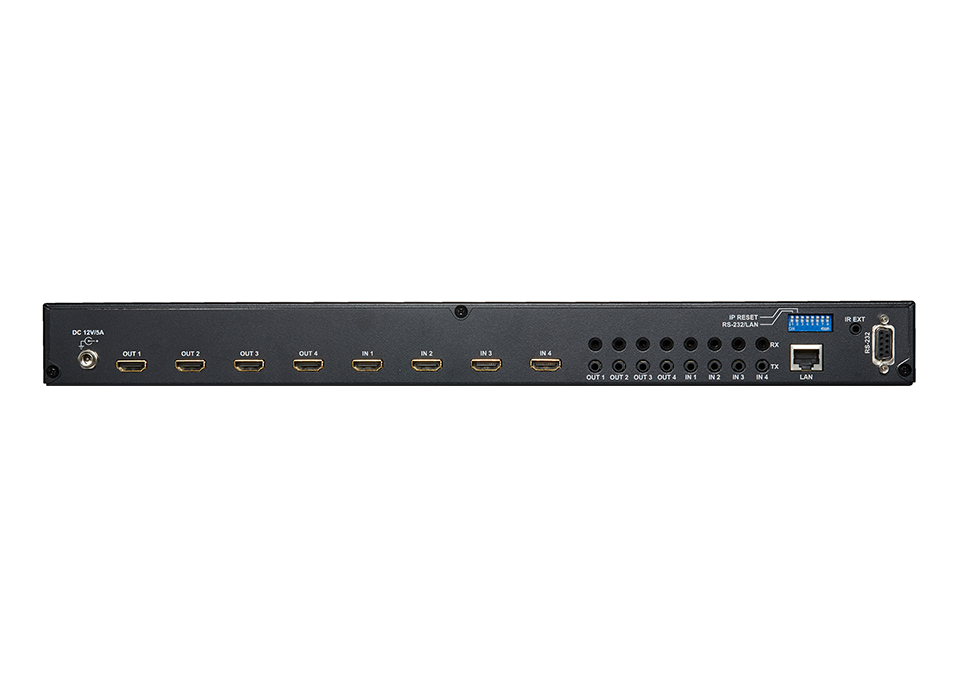

    Input Connector HDMI Type A Female x 4
    Output Connector HDMI Type A Female x 4
    RS-232 Connector DB9 Female
    LAN Connector RJ-45
    8 pins Dip Switch 1
    LCD Module 1
    Power DC 12V/5A
    3.5 Jack 16
    Housing Black Aluminum
    Mounting 1U Rack mountable
    Net Weight 2520g
    Dimensions (LxWxH) 440 x 185 x 42 mm
    Multimedia

    Max. Resolution

    Support 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160)
    with refresh rates of 60 Hz (4:4:4)

    Highest TMDS Frequency

    600 MHz
    Control Information
    HDMI Cable Distance At least 10 meters
    Baud Rate 9600 bps; 8 data bits, 1 stop bit, no parity
    Ethernet Protocol Telnet, HTTP, DHCP, TCP/IP, ICMP (ping)
    Control Sequence Matrix
    Remote Control IR Receiver, IR Blaster
    Web Server LAN, RJ-45
  • 1x  HDMI Matrix Switcher HX-2544
    1x  Power Adapter x 1 12V/5A
    1x  RS-232 Communication Connected Cable
    1x  LAN Line x 1
    1x  HDMI Cable x 1
    1x  IR Receiver Cable x 1
    1x  IR Blaster Cable x 1
    1x  Matrix Switcher Remote Controller with (AAA Battery x 2)
    1x  User Manual x 1
    1x  Rack-Mount Bracket x 2
    1x Screws (for Brackets) x 6
