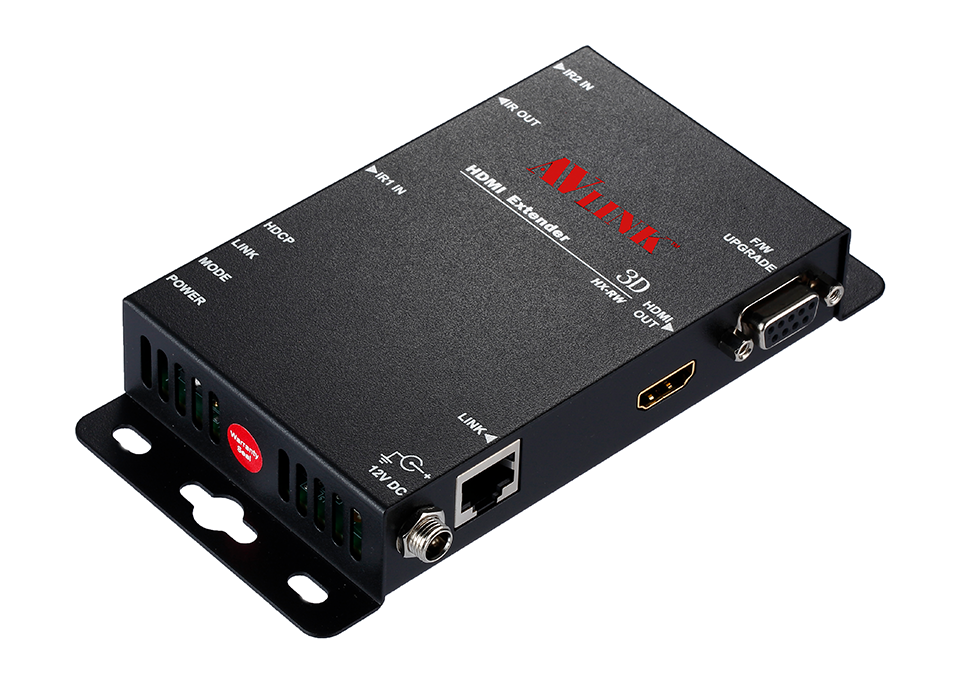

HX-RW
- Through the HDMI Extender, you can use one source device (HDBaseT output port) to display identical image and extension of HDMI signal up to 100 meter on HDTV
- HDCP Compliant
- Supports 3D pass-through
- Supports all frequency band IR control
- One CAT.5/6x cable extension
- Supports resolution up to 4Kx2K
- HDBaseT technology
- Remote box for AVLINK's 4K(HDBaseT) Matrix model# HX-2444. HX-2488. HX-341616
-
Function HX-RW HDMI Out Connector HDMI A-Type Female x 1 RJ-45 Connector 1 IR OUT 3.5φ Stereo Jack x 1 IR2 IN 3.5φ Stereo Jack x 1 Max. Resolution 4Kx2K Cable Distance 100 m Power Adapter (Min.) DC 12V with lock Housing Metal Weight 308g Dimensions (LxWxH) 150x80x25 mm -
1x HX-RW Remote Unit
1x user manual
1x Power adapter DC 12V with lock
1x IR Blaster Cable(Peak Wavelength 940nm)
1x IR Receiver Cable
2x screws
4x foot pads
