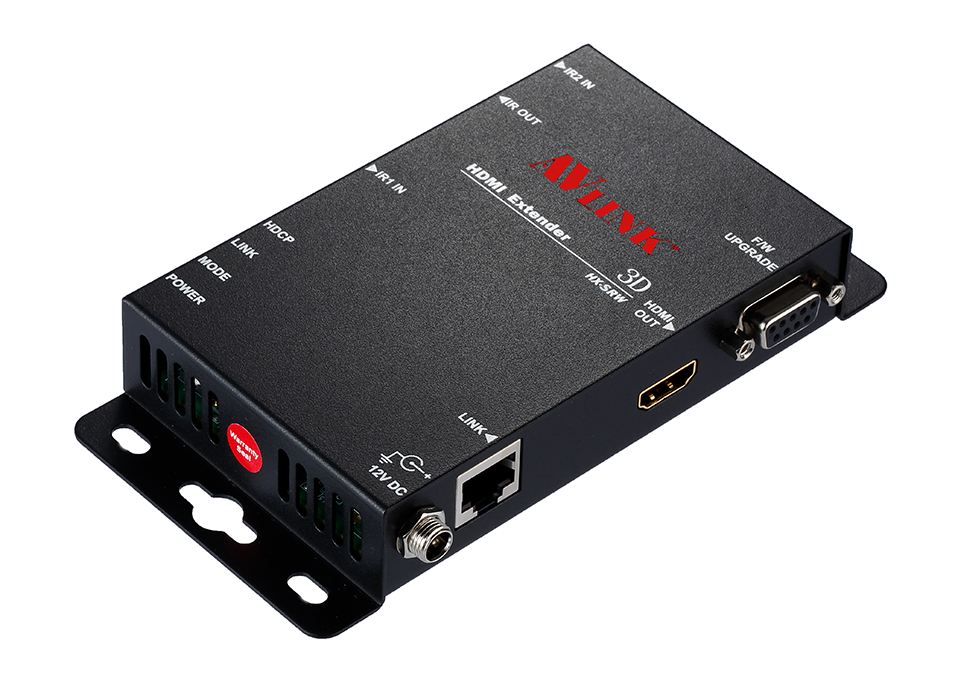

HX-SRW

  • Through the HDMI Extender, you can use one source device (HDBaseT output port) to display identical image and extension of HDMI signal up to 100 meter on HDTV

  • HDCP Compliant

  • Supports 3D pass-through

  • Supports all frequency band IR control

  • One CAT.5 cable extension

  • Supports resolution up to 4Kx2K

  • HDBaseT technology

  • Use CAT.5 cable to install easily


  • Function HX-SRW

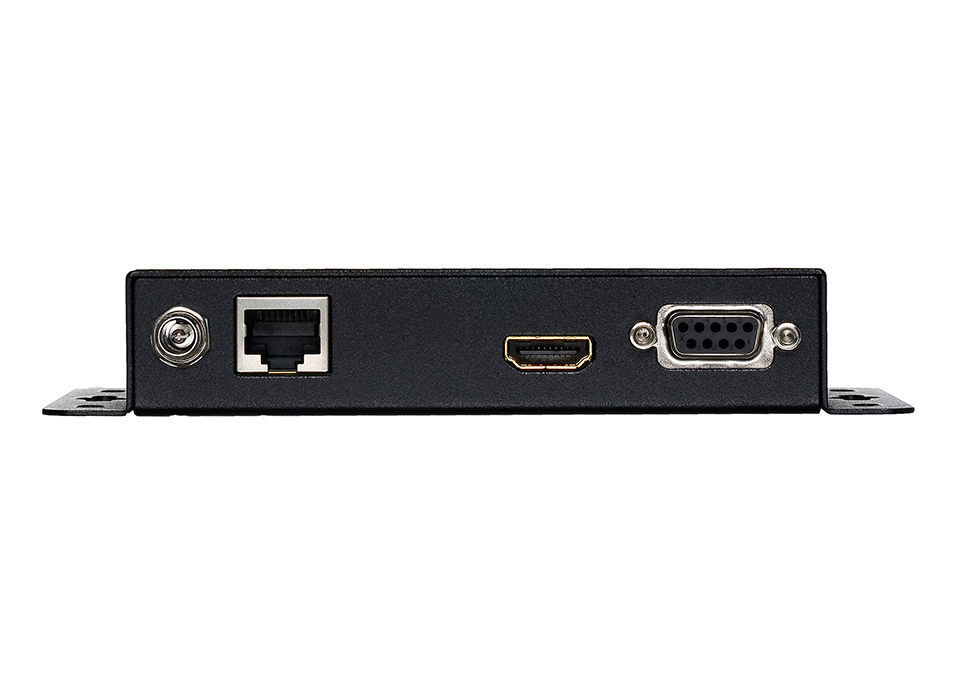

    HDMI Out Connector HDMI A-Type Female x 1
    RJ-45 Connector 1
    IR OUT 3.5φ Stereo Jack x 1
    IR2 IN 3.5φ Stereo Jack x 1
    Max. Resolution 4Kx2K
    Cable Distance 70 m
    Power Adapter (Min.) DC 12V with lock
    Housing Metal
    Weight 308g
    Dimensions (LxWxH) 150x80x25 mm
  • 1x HX-RW or HX-SRW Remote Unit
    1 user manual
    1x Power adapter DC 12V with lock
    1x IR Blaster Cable(Peak Wavelength 940nm)
    1x IR Receiver Cable
    2x screws
    4x foot pads
