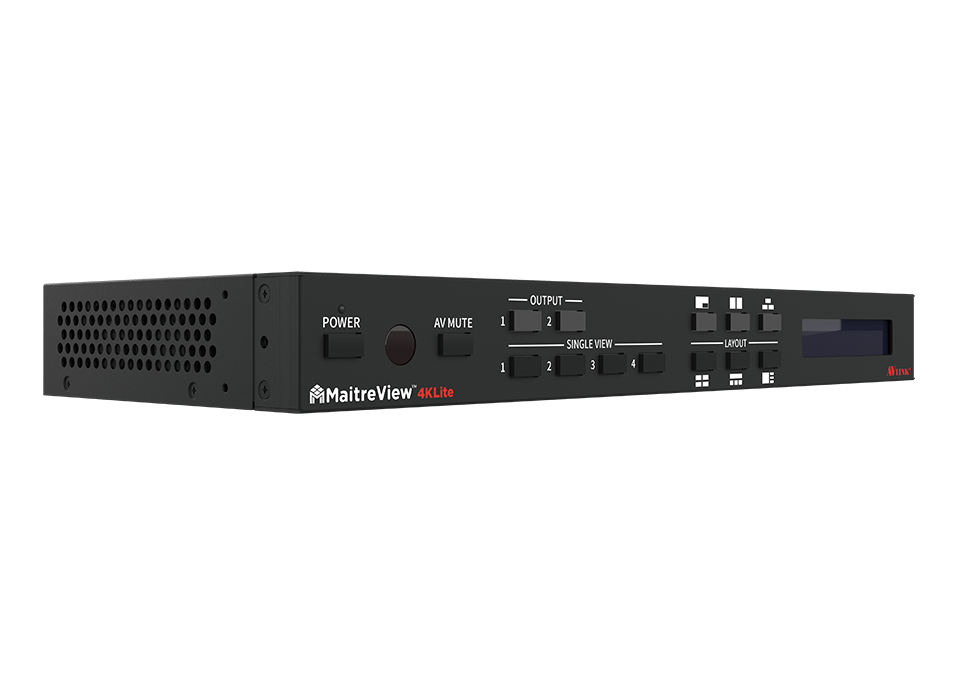

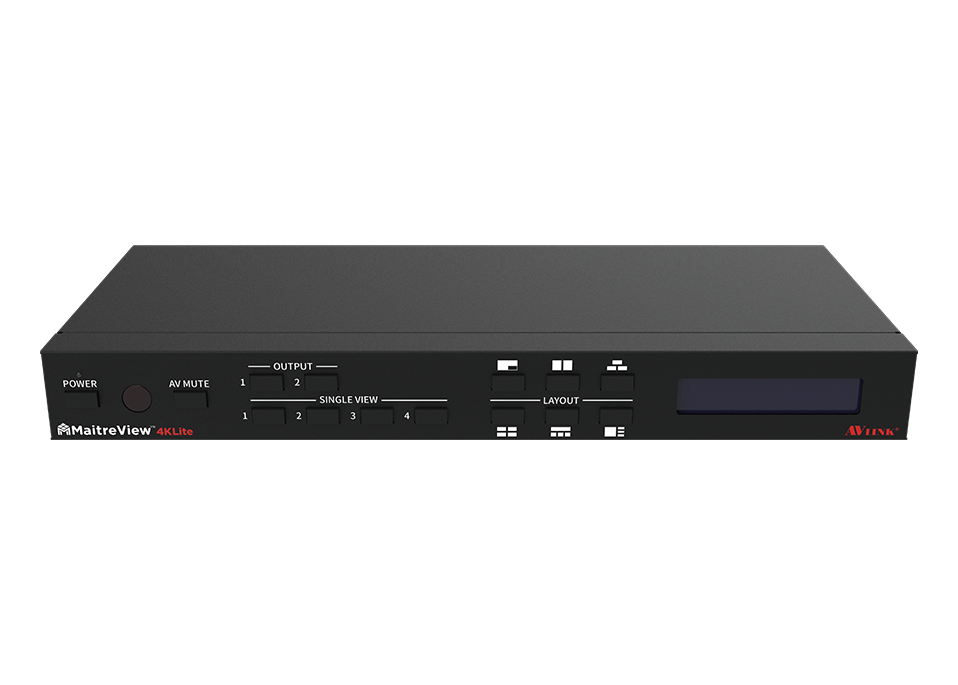

MaitreView™ 4KLite

  • 4K/60Hz multi-window video processor

  • 4x HDMI 2.0 inputs and 2x HDMI 2.0 outputs

  • All inputs and outputs support up to UNCOMPRESSED 4K/60Hz 4:4:4 (18 Gbps bandwidth)

  • Seamless switching between multiple sources

  • Independent layouts processing on each output

  • 4 split layers (4K) on each output

  • Powerful video processing algorithms driving on FPGA

  • 6 Preset Modes

  • Flexible control of web GUI, tablet APP, IR (remote control), front buttons, RS232, and APIs (Application Programming Interfaces)

  • Multi-window Video Processor Family Featuring Xilinx Kintex® UltraScale™ Devices
  • Feature_Pic_580x325_1

    Revolution for conferencing & collaborative work

    Explore creativity and enhance productivity with the MaitreView™ 4KLite.

    The core engine of the MaitreView™ 4KLite is powered by the advanced 4K video processing algorithms driving on FPGA.

    All inputs and outputs of the MaitreView™ 4KLite support uncompressed 4K/60Hz 4:4:4 (18 Gbps bandwidth) that never loses any details on important data.



    feeling the power of Flexibility

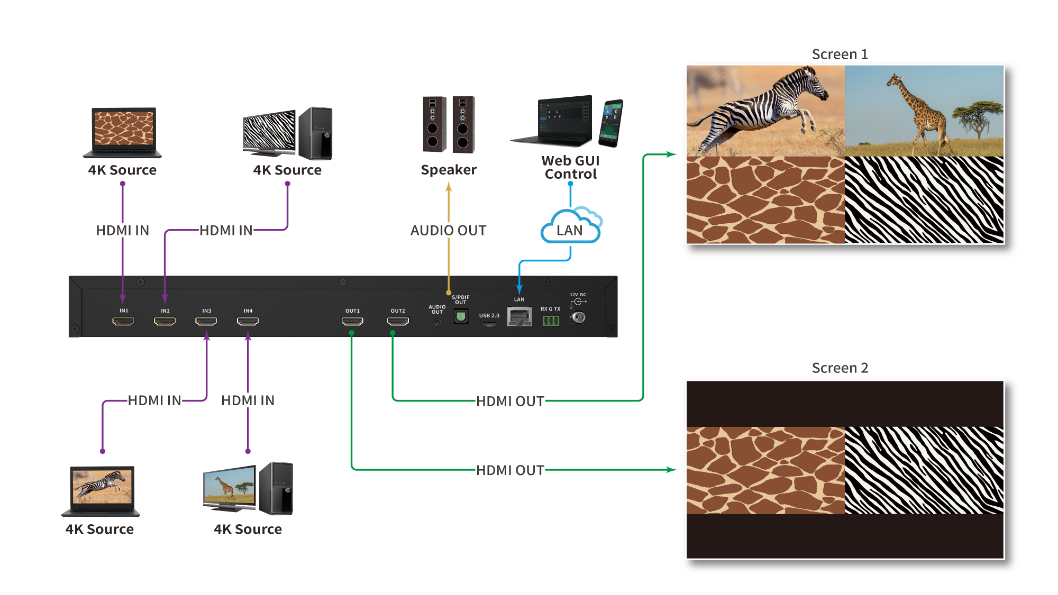

    4x HDMI inputs and 2x HDMI outputs with independent layouts on each output offer magnificently flexibility to most scenarios for conferencing and collaborative work.

    Easy to use comes as standard and uses a web GUI, IR (remote control), front buttons, and RS232 for switching up to 6 default multi-window and single-window modes.

    2022-05-04_MaitreView-4K-Lite.120

    Feature_Pic_580x325_1

    TAA Compliant

    TAA (Trade Agreements Act) requires that the U.S. Government purchases products that are produced or undergo a "substantial transformation" in Taiwan or an approved country.

    In order to meet and exceed the TAA standards, AV LINK’s major components of products are designed, manufactured, assembled, and tested in Taiwan and AV LINK also keeps checking the origin of parts of the products.





    Unparalleled Video Processing Engine



    The MaitreView™ is powered by the most advanced algorithm driving on FPGA (Field Programmable Gate Array) as a core technology for video processing from 720p, 1080p FHD, to 4K/60Hz 4:4:4.



    Uncompressed
    4K/60Hz 4:4:4


    The optimized MaitreView™ video engine processes UNCOMPRESSED 4K/60Hz 4:4:4 (18 Gbps bandwidth) on all inputs and outputs.



    6 Preset Modes



    Switch up to 6 default multi-window and single-window modes

    .









    4 split layers (4K) each output



    Enhance productivity and creativity.

     The MaitreView 4KLite offers real-time 4 split layers deploying on one screen, and independent layouts processing on 2 outputs.









    Independent layouts on
    2 outputs



    The MaitreView™ delivers independent layouts processing on 2 outputs.

    Never let fixed and copied layout occupy all the output screens and bore the meeting.







    Seamless Switching



     The MaitreView™'s video engine offers real-time 4K pixel processing for seamless switching.

    Don’t lose any moment when switching channels.










    Side By Side





    Display sources side by side for easy comparison. Speed up decision-making and increase productivity.











    Remote Control




    IR (remote control) allows controlling the device remotely. Without leaving the seat, control the device easily.











    Web GUI




    Web GUI for controlling the computer or laptop. The user-friendly interface allows intuitive management.











  • Video Processing
    Technology FPGA
    Resolution Inputs & Outputs up to 4K/60Hz 4:4:4
    Max. number of split layer 4 split layers on each output port
    Regions
    Seamless switch Available when changing sources or Presets
    Configuration & Control
    Control ports RJ45 with Gigabit Ethernet
    PC remote control Windows environment with .NET Framework 4.5
    Pad remote control Tablet APP Supported
    3rd party controller connectivity API

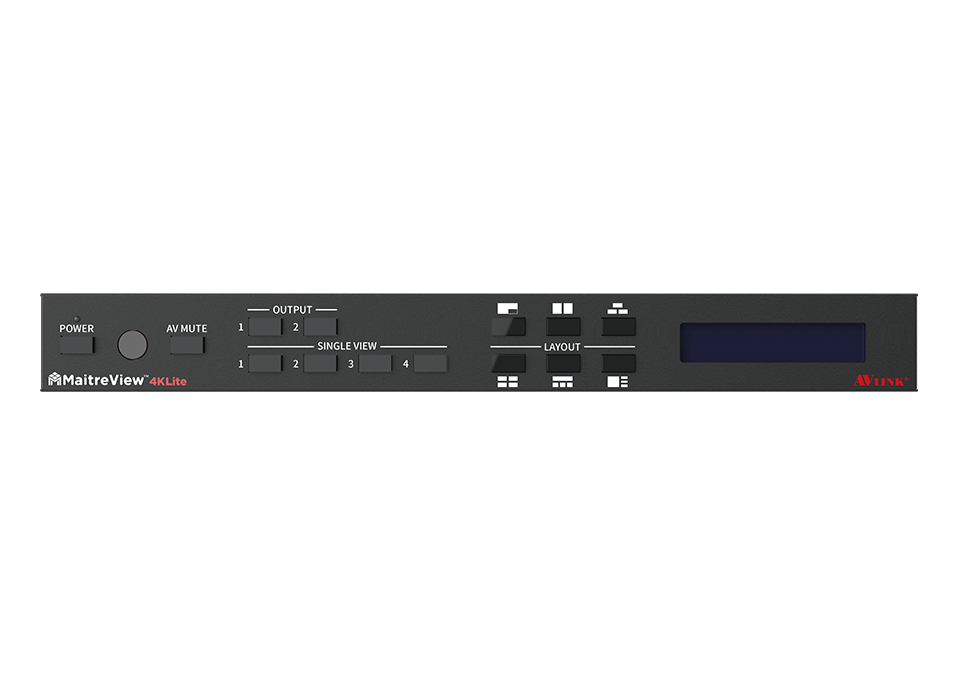

    Local control Front buttons

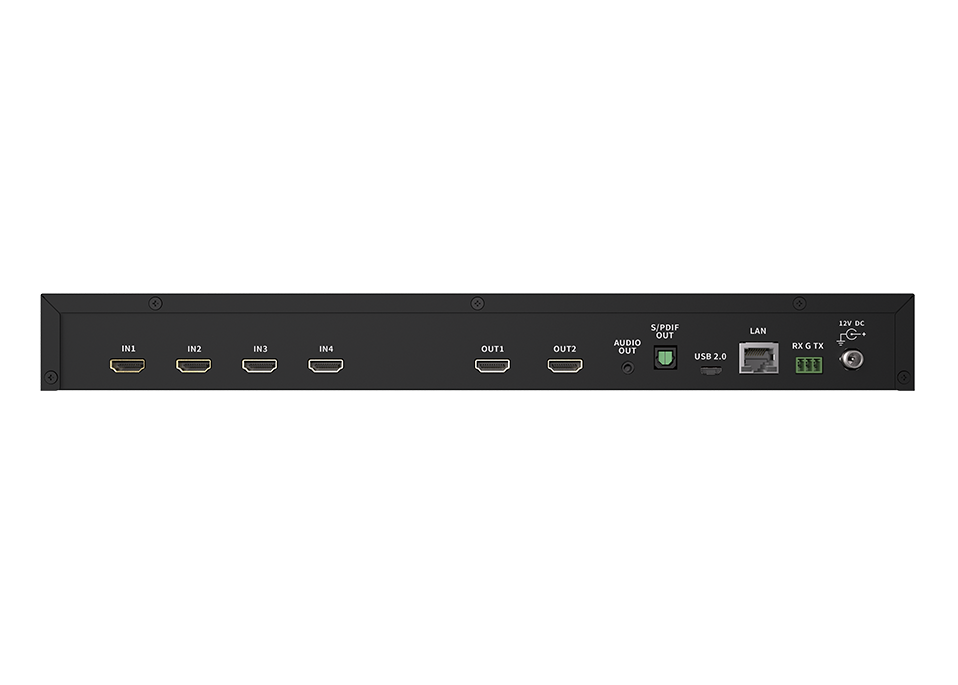

    Video Inputs
    Input connectors 4 x HDMI - HDMI 2.0 & HDCP 2.2 compatibility
    Resolution 4K/60Hz 4:4:4 on all inputs
    Video Output
    Output connectors 2 x HDMI - HDMI 2.0 & HDCP 2.2 compatibility
    Resolution 4K/60Hz 4:4:4 on all outputs
    Audio Output
    Connector 3.5mm Jack and S/PDIF
    Supported channels 1 stereo pairs
    Mechanical
    Size (L x W x H ) 383 x 170 x 43  mm
    482 x 170 x 43 mm with mounting kit
    Weight 2050g
    2170g with mounting kit




  •
  • Performance Test for 120 Hours

    FEATURE INTRO



    • MaitreView™ 4KLite unit
    • Rack-Mounting Ear Set
    • AC Power adapter 100-240V
    • Quick Start Guide
