Home > Product > Multi-window Video Processor > MaitreView™ 4KPlus

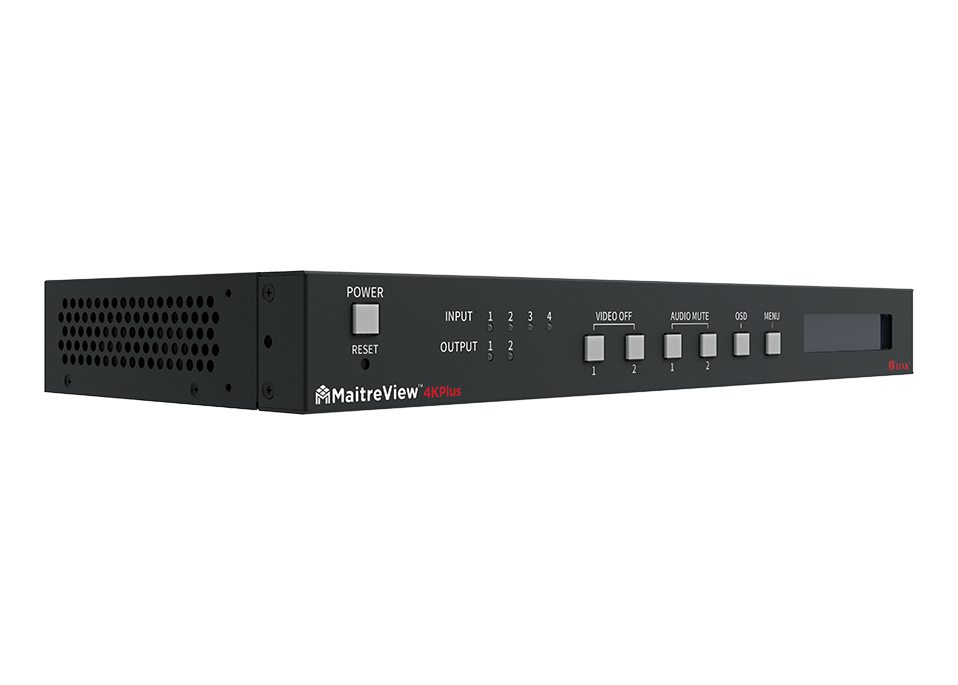

MaitreView™ 4KPlus

  • 4K/60Hz multi-window video processor
  • 4x HDMI 2.0 inputs and 2x HDMI 2.0 outputs
  • All inputs and outputs support up to UNCOMPRESSED 4K/60Hz 4:4:4 (18 Gbps bandwidth)
  • Seamless switching between multiple sources
  • Real-time drag and drop to deploy layouts
  • Independent layouts processing on each output
  • 4 split layers (4K) on each output
  • OSD - On-Screen Display to identify input sources on output screens
  • Adjustable borderlines to highlight the selected regions
  • Powerful video processing algorithm driving on FPGA
  • Configure password-based authentication for the web GUI
  • User Management allows users to access resources according to their roles in the web GUI.
  • Flexible control of the Web GUI, tablet APP, front buttons, RS-232, and APIs (Application Programming Interfaces)
  • Multi-window Video Processor Family Featuring Xilinx Kintex® UltraScale™ Device
  • Feature_Pic_580x325_1

    Revolution for conferencing & collaborative work

    Explore creativity and enhance productivity.

    The core engine
     is powered by the advanced 4K video processing algorithms driving on FPGA.

    All inputs and outputs support uncompressed 4K/60Hz 4:4:4 (18 Gbps bandwidth) that never loses any details on important data.


    feeling the power of Flexibility

    4x HDMI inputs and 2x HDMI outputs with independent layouts on each output offer magnificently flexibility to most scenarios for conferencing and collaborative work.

    Real-time Drag & Drop to deploy information from 4 inputs in any size and position to display on 2 outputs.

    Any way clients like and anywhere clients want to show all information on 2 screens.



    TAA (Trade Agreements Act) requires that the U.S. Government purchases products that are produced or undergo a "substantial transformation" in Taiwan or an approved country.

    In order to meet and exceed the TAA standards, AV LINK’s major components of products are designed, manufactured, assembled, and tested in Taiwan and AV LINK also keeps checking the origin of parts of the products.




    Won Best of Show Award at InfoComm from Sound & Video Contractor.



    Unparalleled Video Processing Engine


    It is powered by the most advanced algorithms driving on FPGA (Field Programmable Gate Array) as a core technology for video processing from 720p, 1080p FHD, to 4K/60Hz 4:4:4.

    4K/60Hz 4:4:4

    The optimized video engine processes UNCOMPRESSED 4K/60Hz 4:4:4 (18 Gbps bandwidth) on all inputs and outputs.


    Simple to Use

    "Drag & Drop"

    No more complex controlling setups. Just simply drag and drop to deploy the layout anytime and anyway.

    Never bridled by templated or fixed layouts.


    4 split layers (4K)
    each output


    Enhance productivity and creativity.

     Offer real-time 4 split layers deploying on one screen, and independent layouts processing on 2 outputs.


    Independent layouts on 2 outputs

    Deliver independent layouts processing on 2 outputs.

    Never let fixed and copied layouts occupy all your output screens and bore the meeting.


    Seamless Switching


     The video engine offers real-time 4K pixel processing for seamless switching.

    Don’t lose any moment when switching channels
    Intuitive Management


    The web GUI and tablet APP with a user-friendly interface for remote control, and front buttons supported.


    Side By Side

    Display sources side by side for easy comparison. Speed up decision-making and increase productivity.



    Web GUI

      The web GUI for controlling the computer or laptop. The user-friendly interface allows intuitive management.

  • Video Processing
    Technology FPGA
    Resolution Inputs & Outputs up to 4K/60Hz 4:4:4
    Max. number of split layer 4 split layers on each output
    Borders Configurable color & thickness
    OSD Available on all regions with user renames
    Seamless switch Available when changing sources or Presets
    Configuration & Control
    Control ports RJ45 with Gigabit Ethernet
    PC remote control Windows environment with .NET Framework 4.5
    Pad remote control Tablet APP Supported
    3rd party controller connectivity API
    Local control Front buttons
    Video Inputs
    Input connectors 4 x HDMI - HDMI 2.0 & HDCP 2.2 compatibility
    Resolution 4K/60Hz 4:4:4 on all inputs
    Video Output
    Output connectors 2 x HDMI - HDMI 2.0 & HDCP 2.2 compatibility
    Resolution 4K/60Hz 4:4:4 on all outputs
    Audio Output
    Connector 3.5mm Jack and S/PDIF
    Supported channels Stereo 2 channel
    Size (H x W x D ) 383 x 170 x 43  mm
    482 x 170 x 43 mm with mounting kit
    Weight 2050g
    2170g with mounting kit


    • The main device
    • Rack-Mounting Ear Set
    • AC Power adapter 100-240V
    • Quick Start Guide
