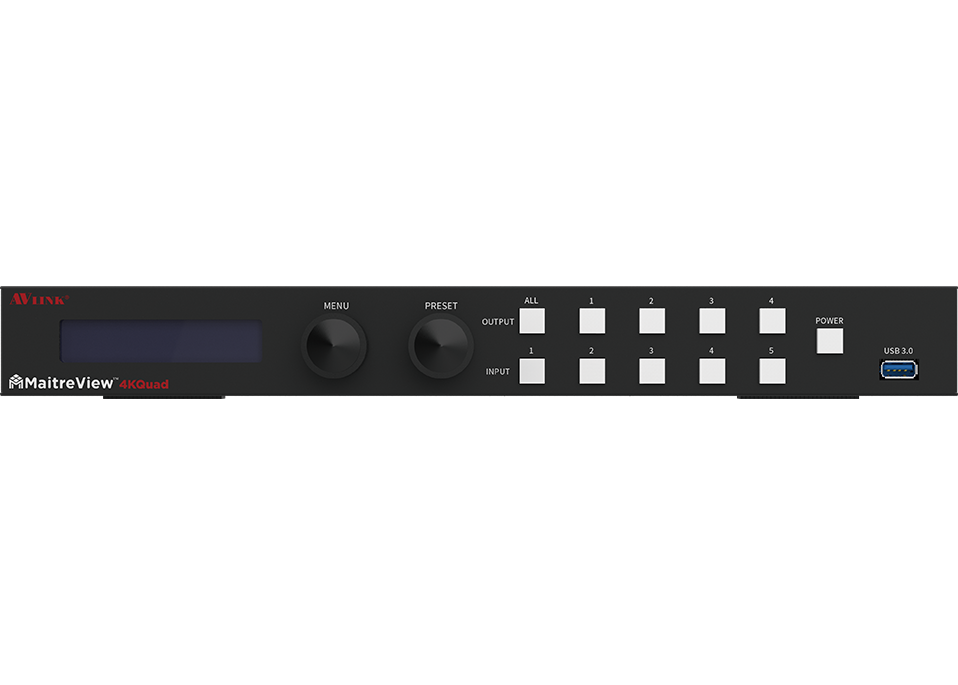

MaitreView™ 4KQuad

  • 4K/60Hz 4:4:4 Presentation Switcher & Video Wall Controller

  • 5 HDMI 2.0 inputs and 4 HDMI 2.0 outputs

  • Seamless switching between multiple sources

  • Support multiviewer, video wall, and matrix

  • Video Wall customizes display layouts for large-format content

  • USB Video Class (UVC) allows video data from output 1 to be streamed to a host

  • USB 3.0 on the front panel uploads still images.

  • OSD - On-Screen Display to identify input sources on output screens

  • Adjustable borderlines to highlight the selected regions

  • Flexible control of the Web GUI (Graphic User Interface), tablet application, front buttons, RS-232, and APIs (Application Programming Interfaces)

  • Multi-window Video Processor Family Featuring Xilinx Kintex® UltraScale™ Device
  • Feature_Pic_580x325_1


    Revolution for Entertainment and Sports bars

    Explore creativity and enhance visual experience.

    The core engine
     is powered by the advanced 4K video processing algorithms driving on FPGA.

    All inputs and outputs support uncompressed 4K/60Hz 4:4:4 (18 Gbps bandwidth) that never loses any details on important data.









    feeling the power of Flexibility

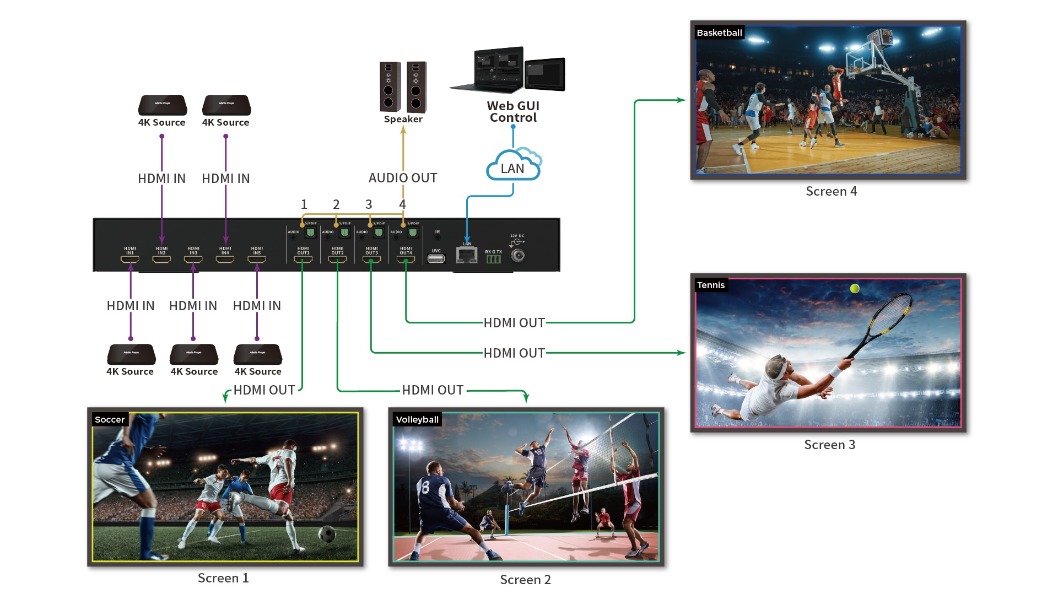

    5 HDMI inputs and 4 HDMI outputs with independent layouts on each output offer magnificently flexibility to most scenarios for conferencing and collaborative work.

    The device features OSD - On-Screen Display to identify input sources on output screens and modularized borderlines to highlight the selected regions


    Feature_Pic_580x325_1

    TAA COMPLIANT

    TAA (Trade Agreements Act) requires that the U.S. Government purchases products that are produced or undergo a "substantial transformation" in Taiwan or an approved country.

    In order to meet and exceed the TAA standards, AV LINK’s major components of products are designed, manufactured, assembled, and tested in Taiwan and AV LINK also keeps checking the origin of parts of the products.













    Uncompressed

    4K/60Hz 4:4:4



    The optimized video engine processes UNCOMPRESSED 4K/60Hz 4:4:4 (18 Gbps bandwidth) on all inputs and outputs.

    Seamless Switching




    The video engine offers real-time 4K pixel processing for seamless switching.

    Don’t lose any moment when switching channels
    .


    Multiple Inputs

    and Outputs



    5 HDMI 2.0 inputs and 4 HDMI 2.0 provide more options for inputs and outputs.













    Multiviewer



    The multi-view display makes the most of the visual space to enhance collaborations.

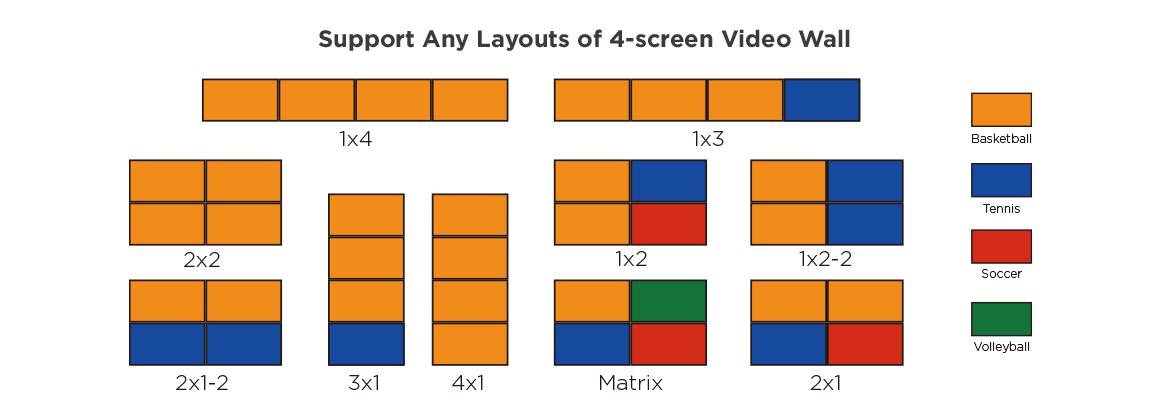

    Video Wall


    Video Wall customizes display layouts for large-format content and enhances the amazing visual experience.





    Matrix

      The matrix's multiple video-switching modes meet various visual needs.










    UVC



    USB Video Class (UVC) allows streaming video from output 1 to be sent to a host.








  • Video Processing
    Resolution Inputs & Outputs up to 4K/60Hz 4:4:4
    Regions
    Borders Configurable color & thickness
    OSD Available on all regions with user renames
    Seamless switch Available when changing sources or Presets
    Configuration & Control
    Control ports RJ45 with Gigabit Ethernet
    Pad remote control Tablet Application Supported
    3rd party controller connectivity API
    Serial Command RS-232
    Local control Front buttons
    Video Inputs
    Input connectors 5 x HDMI - HDMI 2.0 & HDCP 2.2 compatibility
    Resolution 4K/60Hz 4:4:4 on all inputs
    Video Output
    Output connectors 4 x HDMI - HDMI 2.0 & HDCP 2.2 compatibility
    Resolution 4K/60Hz 4:4:4 on all outputs
    Audio Output
    Connector 4 x 3.5mm Jack and 4x S/PDIF
    Supported channels Stereo 4 channel
    Mechanical
    Size (L x W x H) 383 x 214 x 44  mm
    482 x 214 x 44 mm with mounting kit
    Net Weight 2050 g
    2170 g with mounting kit
  •




    • The main device
    • Rack-Mounting Ear Set
    • AC Power adapter 100-240V
    • Quick Start Guide
