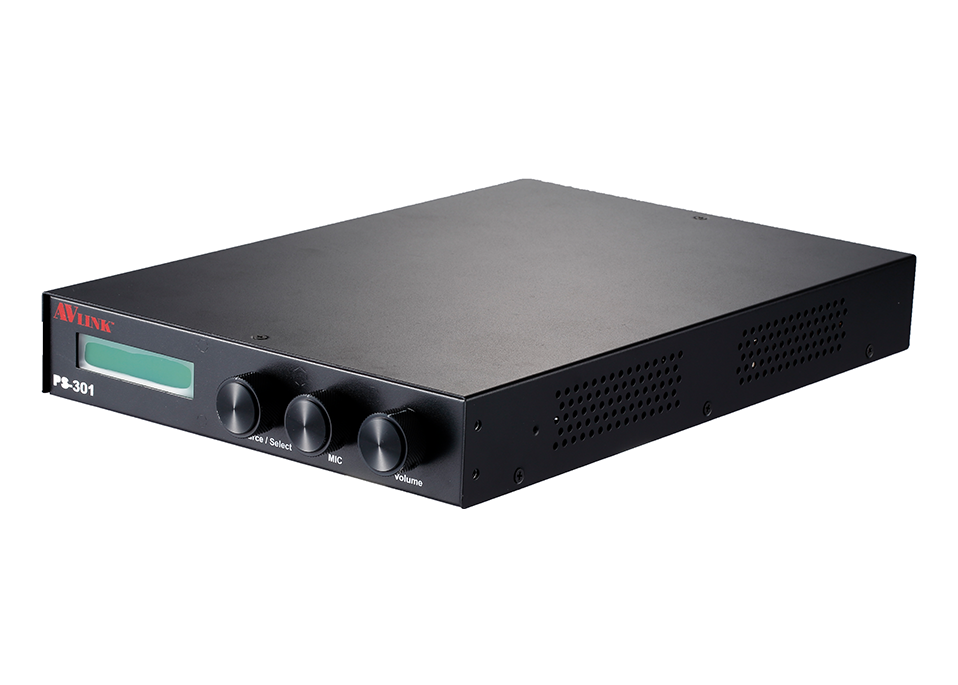

PS-301

The Presentation Switcher is a high performance, zero-second latency switching equipment with simple 3x1 transmission interfaces. It is a switcher and also a converter means that it can handle virtually video/audio signals on its 3 HDMI inputs (PS-301). Split the HDMI signal and mix with the audio signal comes from the MIC input interface integrated the optical SPDIF.  The built-in converter handles analog to digital conversion, as well as the signals conversion is virtually converted to any output equipments including any projector, TV or other audio amplifier. Built-in extender interfaces allowing you to integrate external extensible accessory devices to transmit data or to over long distances up to 70 meters.
  • 3 x HDMI In Up to 4K x 2K@30fps
  • 1 x HDMI Output w/HDBaseT 70 Meters Output (Bypass Input Audio Only, None Microphone Mixer)
  • 1 x Microphone Input (XLR Connector)
  • MIC inputs can be provided up to +48V phantom power
  • Knob Adjustable for Source Volume, Microphone Volume, Main Audio OUT Volume. (Press Knob Once for Mute)
  • Support EDID Management
  • LCD Display for Status Read Easily
  • 2 x Front Panel Push buttons for Source Selection
  • HDBaseT Technology
  • 1U rack Unit Height
  • Function PS-301
    LCD Module 1
    Pushbuttons 2
    Knob 3

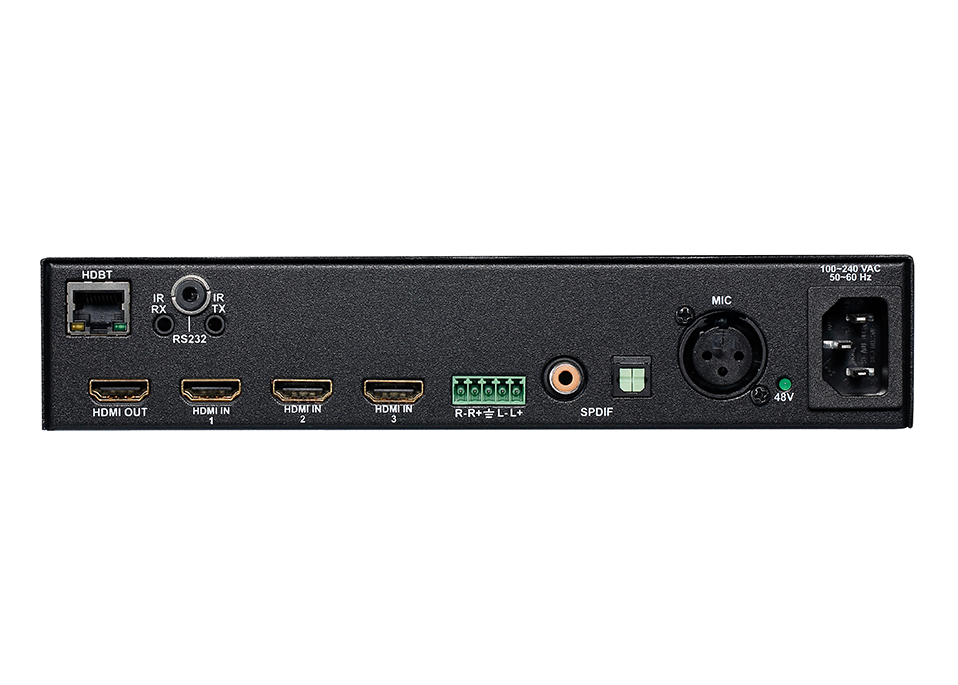

    Input Connector HDMI Type Ax3
    Output Connector HDMI Type Ax1/RJ-45x1
    IR IN 3.5φ Phone Jackx1
    IR OUT 3.5φ Phone Jackx1
    RS-232 3.5φ Phone Jackx1
    MIC Input XLR Connectorx1
    Audio Input 3.5φ Phone Jackx1
    Audio Output Terminals Block (Differential) x 1,Digital Optical Toslinkx1,RCA Digital Audiox1
    LAN Connector RJ-45
    Power 100~240VAC, 50~60Hz, internal
    Main Power Switch 1
    Housing Aluminum/Metal
    Mounting 1U Rack mountable
    Weight 2290g
    Dimensions (LxWxH) 220x350x44mm
  • 1 x PS-301 Presentation Switcher ​​​​​​
    1 x Power Cord
    1 x DB9-F to 3.5mm Serial Cable
    1 x User Manual
