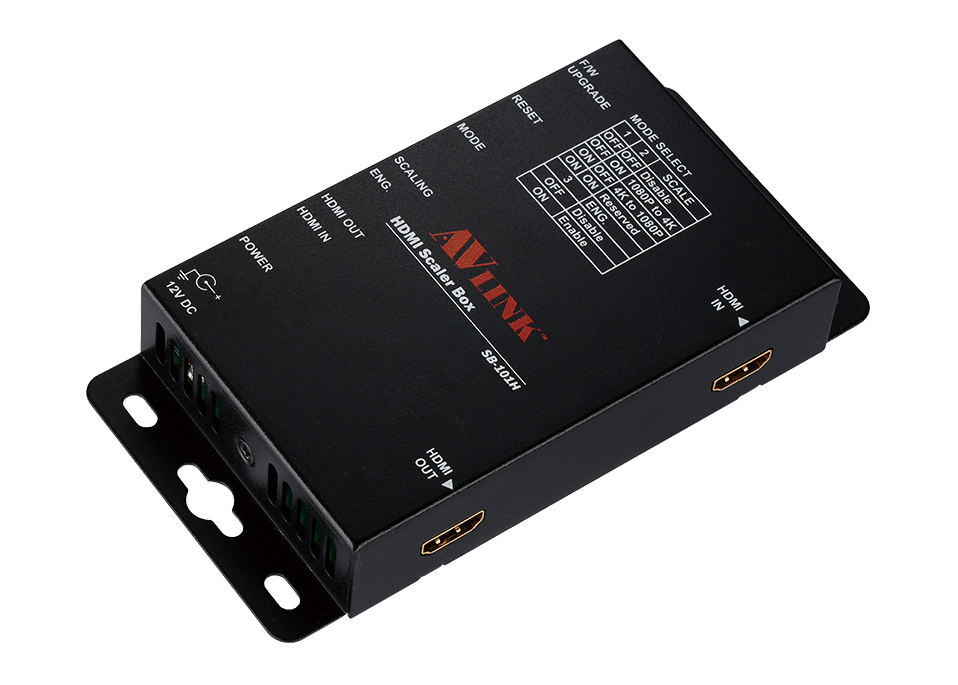

• The SB-101H is designed to allow a user to up/down scale HDMI resolution, The HDMI resolution from 1080P to 4K or 4K to 1080P.   The  other resolutions will bypass from input to output.
  • Supports HDCP 1.4/2.2
  • Supports 1080P to 4K up scale
  • Supports 4K to 1080P Down Scale (4K 4:2:0 Only support Bypass mode)
  • Bypass mode supports Max. resolution up to 4K/60Hz 4:4:4
  • Function SB-101H

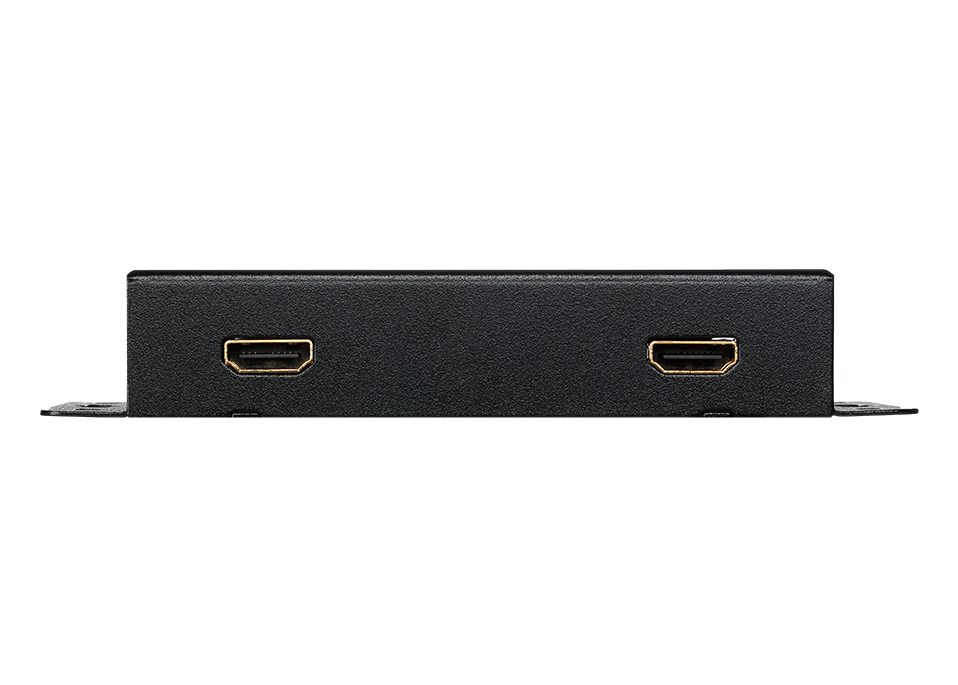

    HDMI In Connector HDMI A-Type Female x 1
    HDMI Out Connector HDMI A-Type Female x 1

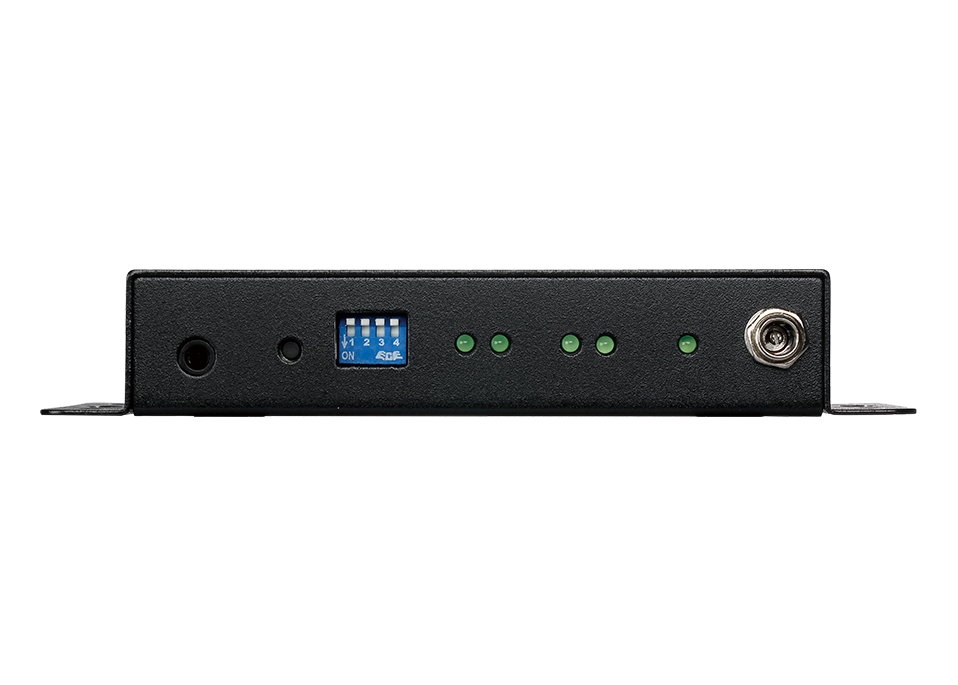

    F/W Upgrade 3.5φStereo Jack x 1
    Reset Tact Switch x 1
    Mode 4 Position DIP Switch x 1
    Scaling 3φGreen LED x 1
    ENG. 3φGreen LED x 1
    HDMI Out 3φGreen LED x 1
    HDMI In 3φGreen LED x 1
    Power 3φGreen LED x 1
    Max. Resolution 4K
    Highest TMDS Frequency Max. 600MHz
    Power Adapter (Min.) DC 12V with lock
    Housing Metal
    Weight 274g
    Dimensions (LxWxH) 150x80x25 mm
    • 1x SB-101H Unit
    • 1 user manual
    • 1x Power adapter DC 12V with lock
    • 2x screws
    • 4x foot pads
