WUH-3MLCU


  • Extend uncompressed 4K/60Hz 4:4:4 HDMI, USB 2.0, and IR to 40 meters over a Cat 6a U/FTP 23AWG cable

  • Switch between USB type-C and HDMI video sources with an illuminated push button

  • PoC (Power over Cable) ON/OFF function

  • Powered by HDBaseT™ 3.0 Technology

  • HDMI 1.4/HDMI 2.0 (HDR) compliant

  • HDCP 1.4/2.2/2.3 compliant

  • USB type-C video input (DisplayPort 1.2 Alternate Mode)

  • USB 2.0 HOST extender

  • CEC pass-through

  • 2-Gang Wall Plate

  • Support all frequency band IR control

  • Compatible with a wide range of AV LINK's HDBaseT™ products, including HDM-3MXC, HDM-3MXCU, and HDM-3MXCU+

  •

    USB Type-C


    The WUH-3MLCU allows to switch between USB type-C and HDMI inputs.

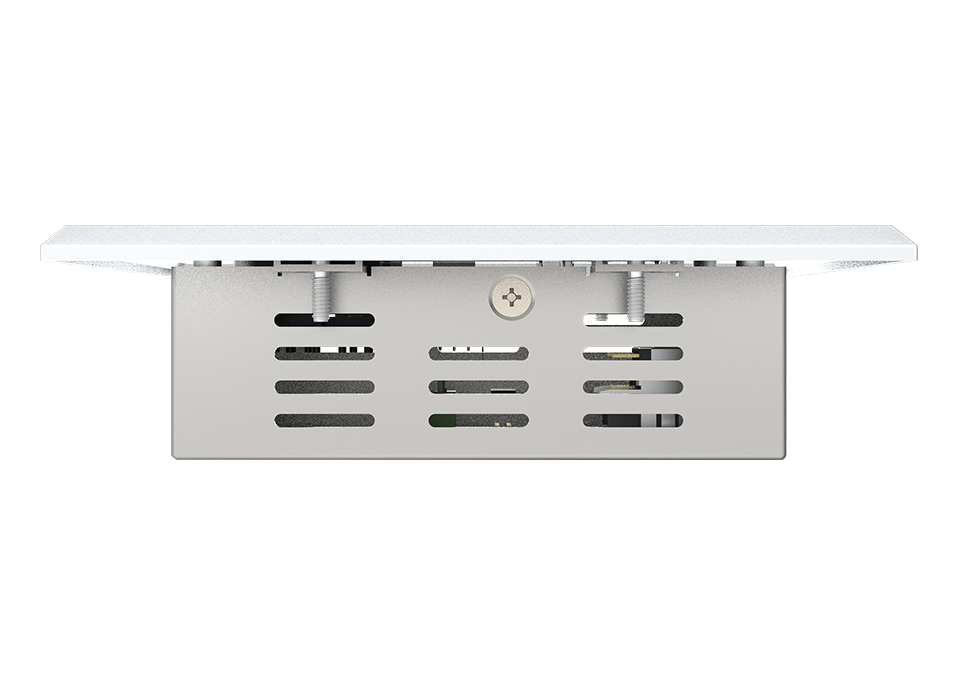

    Wall Plate Design


    The design is convenient to extend crystal-clear sources to HDBaseT™ equipment.

    HDMI 2.0


    Connect to the displays to transmit HDMI video over 40 meters.









    4K HDMI Extender for 40 meters


    The WUH-3MLCU is powered by the HDBaseT™ 3.0 platform offering 18Gbps bandwidth for extending uncompressed 4K/60Hz 4:4:4 HDMI, USB 2.0, IR, and RS-232 signal up to 40 meters via a Cat 6a U/FTP 23AWG cable.

    Optimized hardware performance and system reliability


    The hardware of WUH-3MLCU ensures performance and system reliability.

    Power over Cable




    PoC (Power over Cable) enables the device to power over a Cat. cable. By using a single-sided power supply on the transmitter.









  •
    SPECIFICATION
    Cable Distance 40M (CAT6A U/FTP)
    USB Type B USB 2.0 ( Host )
    HDMI In Connector HDMI A-Type Female x 1
    USB Type-C In Connector USB Type-C Female x 1
    Control Port RJ-45 Connector x 1
    RS-232 Connector 1X3 Pole Captive Screw Socket x 1
    IR OUT 3.5ψ Stereo Jack x 1
    IR IN 3.5ψ Stereo Jack x 1
    Source selection
    (HDMI / USB Type-C)
    Illuminated Push Button X1 (Blue/Yellow)
    Max. Resolution 4K/60Hz 4:4:4
    Power Adapter (Min.) DC 12V 2A (1x2 Pole Captive Screw Socket)
    Power Consumption (with PoC) 22W (Max.) / 2W (Stand by)
    Housing Metal
    Net Weight 300 g
    Dimensions (L x W x H) 120 x 120 x 37.5 mm
  • 2022-05-05_HDM-3EXCU_Diagram






  • 1x Main device
    1x User manual
    1x Power adapter DC 12V 2A (With 1x2 Pole Captive Screw Socket)
    4x Screws
    1x Female 1x3 Pole Captive Screw Socket
