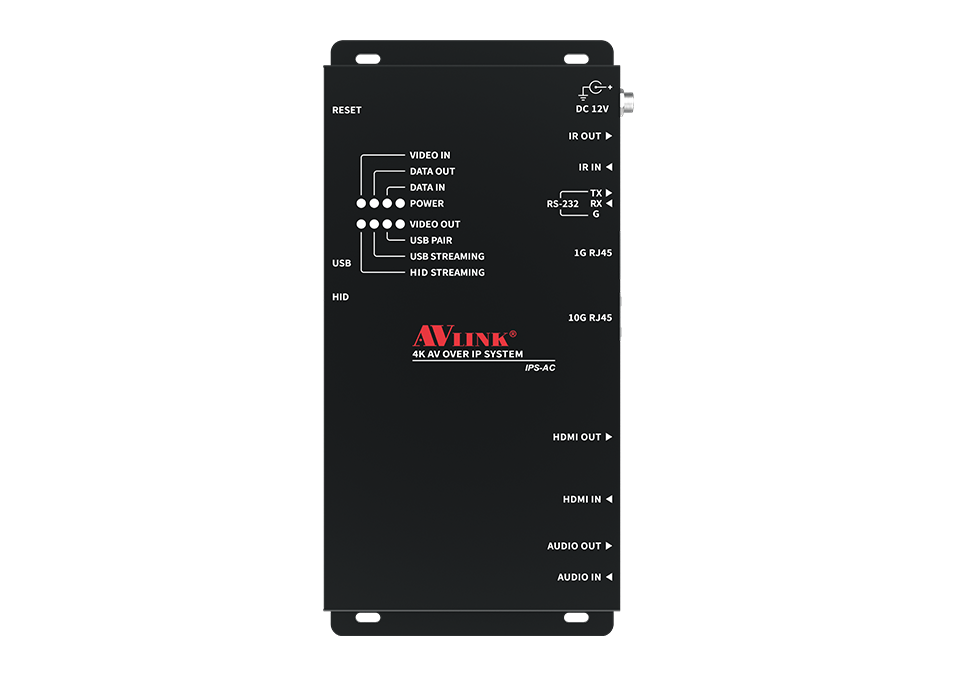

IPS-AC

  • Extend 4K/60Hz 4:4:4 AV over IP via a 10-Gigabit network

  • Standard Cat 6a cable connectivity with distances up to 100 meters

  • Power over Ethernet+ (PoE+)

  • Transceiver - Configure as Transmitter and Receiver with the bi-directional transmission mode

  • End-to-end AES 128-bit encryption ensures safe video transit

  • Optimized fanless system design

  • Transmission of video (matrix switch, multi-view display, video wall, and KVM), audio (audio routing, audio breakout, audio insertion, and extraction), IR (remote control), RS-232, USB, and HID over the network

  • Seamless switching & Zero latency

  • Intuitive web-based GUI through IPS-M (Controller) for system configuration

  • 1-Gigabit Extension

  • Rack mount ready (Optional)

  • shutterstock_1936499776

    Optimized 4K/60Hz AV Over IP System

    The IPS series provide one of the most advanced IP Streaming solutions on the market.

    The IPS supports 4K/60Hz 4:4:4, zero latency, and seamless switching for mission-critical applications including healthcare, corporate, education, and government.


    Choice with greater system flexibility is important

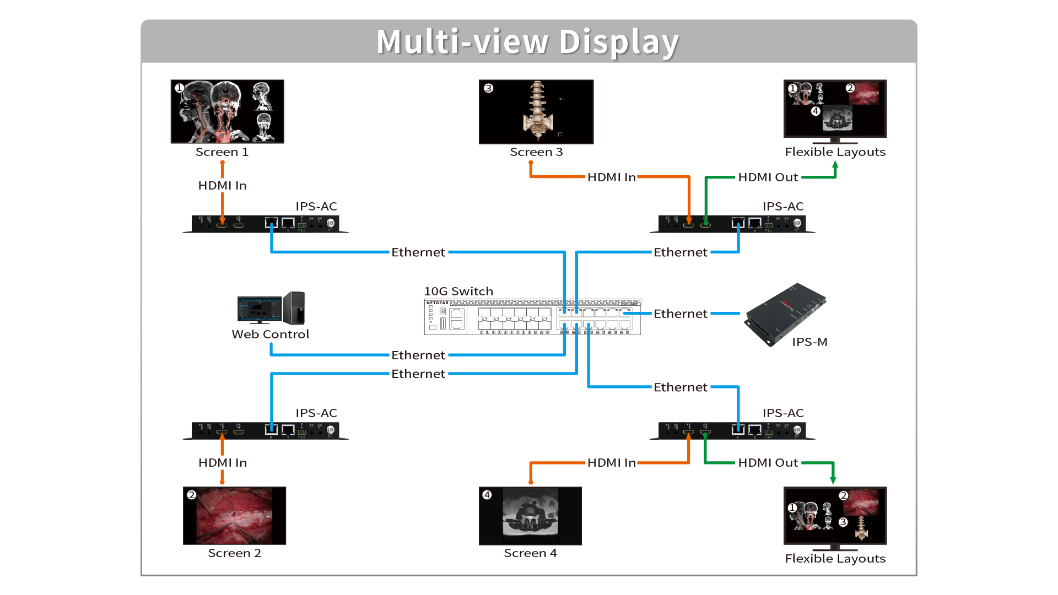

    Modes of matrix switch (routing), multi-view display, video wall, and KVM are available on the IPS network system for most scenarios and applications that users may be encountered.
    Simply Drag & Drop with intuitive UI and icons on the IPS controller offers users easy and efficient management of the system.


    shutterstock_1936499776

    TAA Compliant

    TAA (Trade Agreements Act) requires that the U.S. Government purchases products that are produced or undergo a "substantial transformation" in Taiwan or an approved country.

    In order to meet and exceed the TAA standards, AV LINK’s major components of products are designed, manufactured, assembled, and tested in Taiwan and AV LINK also keeps checking the origin of parts of the products.




    Uncompressed 4K

    The IPS product family transmits perfect resolution of uncompressed 720p, 1080p, and UHD to 4K contents over a 10-Gigabit Ethernet via standard CAT 6a (IPS-AC) and fiber (IPS-AF).



    Zero Latency

    The IPS utilizes SDVoE's AVP platform which offers instant transmission of perfect pixels and data in the networking.





    Transceiver

    The IPS-AC & IPS-AF build both transmitter and receiver in one device.

    The transceiver design offers bi-directional transmission in the network which offers efficiently systemized deployment.












    Unparalleled Performance

    The hardware design of the IPS series is examined by PathWave's Advanced Design System to ensure system reliability and performance.





    Optimized Heat Management

    The optimized hardware layout contributes excellent heat management with a fan-less design.







    Intuitive Management

     The IPS offers an intuitive Web-based GUI that lets users configure video and audio. IR (remote control), RS-232, and USB connections help control the remote displays. A third-party controller through an API connection is available.






    IPS-AC-45



    Ready for Rack Mount

    The IPS-AC, IPS-AF & IPS-M are ready to rack-mount on the RM-7U rack for easier management of devices.

    IPS-AC-48

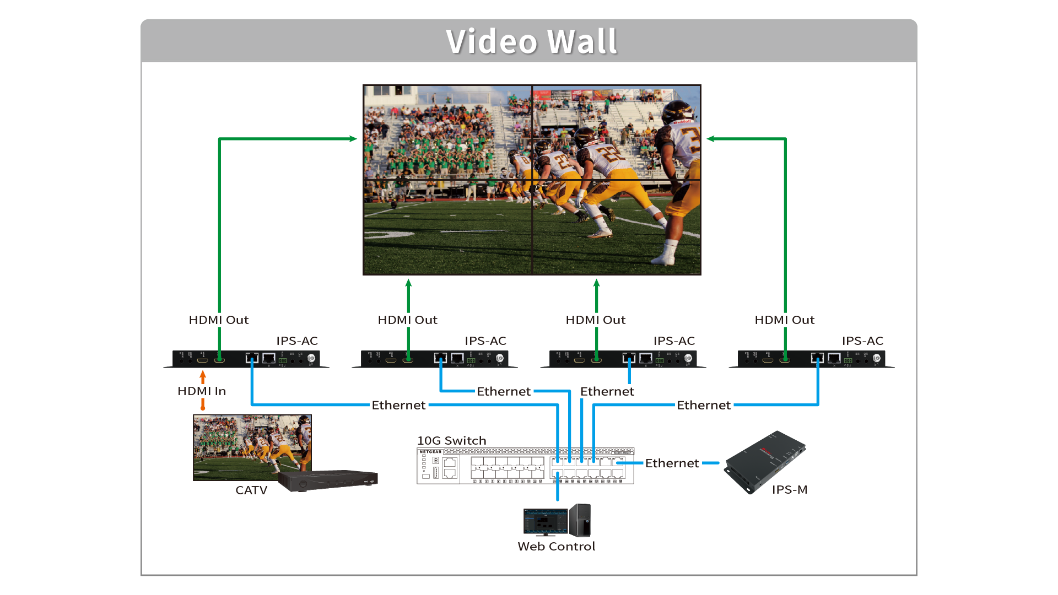

    Excellent Video Wall Synchronization

    The IPS powered by SDVoE's technology offers excellent synchronization on all screens of the video wall from 720p to 4K pixels.





    POE



    Power over Ethernet

    The IPS-AC offers more flexibility on paths of power supply by PoE+ technology.

    Users may choose the input power from either a power adapter or a Cat cable (Ethernet).

    ***10-Gigabit Switch supports PoE+ function is required when IPS-AC devices are powered with PoE+ mode.






    IPS-AC-45



    End-to-end Encryption

    End-to-end AES 128-bit encryption ensures safe video transit









  • VIDEO INPUT
    Video Format Up to HDMI 2.0 4K/60Hz 4:4:4 HDR
    Connector HDMI type A
    VIDEO OUTPUT
    Video Formats Up to HDMI 2.0 4K/60Hz 4:4:4 HDR
    Connector HDMI type A
    EDID Read Display EDID
    HDCP
    HDCP HDCP 2.2 / 1.4 Compliant
    AUDIO INPUT
    Audio Format Analog L/R
    MIC-IN, 20dB gain
    Connector 3.5mm Jack
    AUDIO OUTPUT
    Audio Format Analog L/R
    Connector 3.5mm Jack
    SERIAL DATA
    Channel Capacity 1 bi-directional
    Signal Format RS-232
    Data Rate Up to 115,200 baud rate
    Connector Phoenix 3 pin
    USB
    Signal Format USB 2.0
    Connector Type A
    USB HID
    Signal Format USB 1.1
    Connector Type A
    ETHERNET
    Ethernet Speed 10/100/1000 Base-T
    Connector RJ-45
    10G ETHERNET
    Connector 10GBASE-T / RJ45 with POE+/PD
    POWER SUPPLY
    Voltage +12V DC
    Current (Max.) 2A
    Power Consumption 24W
    CASE
    Dimensions (LxDxH) 210 x 114 x 25 mm
    Construction Metal enclosure with black textured paint finish
    Net Weight 710g


  •
  • Applications

    Customer STORY

    Feature Intro

    Product Intro

  • IPS-AC x 1
    Power Adapter x 1
    User Manual (Online) x 1
